Product Details:
|

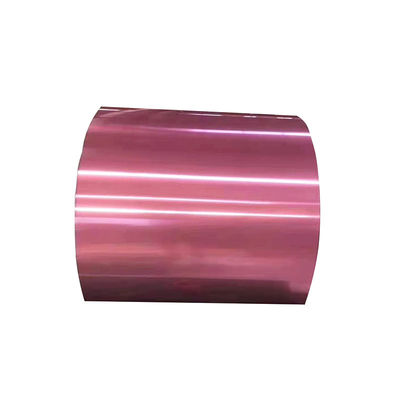

| Name: | Factory Price Prepainted Aluzinc Gavalume Alloy Color Coated PPGI Steel Coils | Grade: | DX51D,DX52D,S350GD,S550GD |
|---|---|---|---|
| Standard: | AiSi, ASTM, BS, DIN, GB, JIS | Width: | 15mm - 1500mm |
| Thickness: | 0.13-1.7mm | Tolerance: | ±3% |
| Technique: | Cold Rolled, Hot Rolled | Forms: | Steel Coil, Color Coated Steel Sheet |
| Surface: | Polyester(PE) / Silicon Modified Polyester / High Weatherability Polyester / PVDF / Epoxy | Color: | All RAL Color Code Or As Customer Request |
| Coating: | Z30-Z180 | Coating Thickness: | Top 15-35, Back 5-15 |
| Coating Type: | Top Paint:PVDF,HDP,SMP,PE,PU; Primer Paint:Polyurethance,Epoxy,PE Back Paint:epoxy,modified Polyester | Coating ID: | 508 Mm/610 Mm |
| Coil Weight: | 5-12 Tons | Processing: | Bending, Welding, Decoiling, Cutting, Punching |
| Payment Term: | 30%TT+70% Balance | Package: | Standard Sea Worthy Package |
| Application: | Building Industry, Decoration, Construction, Roofing |
Shandong Fulilai Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.
| What is Prepainted Steel? |
Pre-painted steel is a corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. Fulilai Steel Group produces pre-painted steel sheets and coils coils by directly applying primer and paint on to steel sheet in a coating line. The finished products can easily be roll formed, bent, and stamped without tarnishing the paint quality.
| Specification of PPGL Steel Coil |
|
Products Name
|
Colour coated steel sheets prepainted galvalume steel coils | ||
|
Grade
|
G550,G350, etc | ||
|
Paint film
|
Top:15-25 +5um Back :5-8um |
||
| Surface Treatment | Coated/ Prepainted galvanized | ||
| Surface coating | PE, SMP, HDP, PVDF | ||
| Zinc Coating | 40g-275g/m² | ||
| Coil Weight | 3-8 Tons | ||
| Thickness | 0.12-2.0mm | ||
| Width | 600~1250mm | ||
| Color | All RAL code or as customer's sample | ||
| Length | Coil or as customer's request | ||
| Top Side | Primer paint+polyester paint coating | ||
| Back side | Primer epoxy | ||
| Packing details | waterproof paper+plastic film+iron packing+bunding or as per customers request. | ||
| Delivery time | 15-45 days after receiving deposit | ||
| Prepainted Steel Applications |
The color coated roll has light weight, beautiful appearance and good anti-corrosion performance, and can be processed directly. The color is generally divided into gray white, sea blue and brick red. It is mainly used in advertising industry, construction industry, home appliance industry, electrical appliance industry, furniture industry and transportation industry. The coating used for color coating roll shall select appropriate resin according to different application environment, such as polyester silicon modified polyester, polyvinyl chloride plastic sol, polyvinylidene chloride, etc. Users can choose according to the purpose.
The annual capacity of a Color-coated Line is 240,000 tons. We could manufacture top grade steel sheet in building materials plate, automobile plate, electrical appliance plate, solar energy panel, high coating and corrosion resistant plate, MATT plate, and plate used for windows and doors.
