Product Details:
|
| Name: | Hot Dipped PPGI Steel Coil | Grade: | DX51D, SGCC, S550, S350, |
|---|---|---|---|
| Standard: | AISI, ASTM, BS, DIN, GB, JISJIS3302, EN 10142, ASTM A653, SGCC/SGCH,European Standard, ASTM A792 | Width: | 600mm - 1250mm |
| Thickness: | 0.2-1.5mm | Tolerance: | ±5% |
| Technique: | Hot Dip | Forms: | Steel Coil, Color Coated Steel Sheet, Color Coated Steel Sheet |
| Surface: | Polyester(PE) / Silicon Modified Polyester / High Weatherability Polyester / PVDF / Epoxy | Color: | Red, Blue, Or As Request |
| Coating: | Z60-Z180 | Coating Thickness: | Top 15-25, Back 5-18 |
| Coating Type: | EP, PE, HDP, SMP, PVDF | Coil ID: | 508 Mm/610 Mm |
| Coil Weight: | 3-6 Tons | Processing: | Bending, Welding, Decoiling, Cutting, Punching |
| Payment Term: | 30%TT+70% Balance | Package: | Standard Sea Worthy Package |
| Application: | Building Industry, Decoration, Construction, Roofing | ||
| High Light: | Garner Red Prepainted Galvanized Steel Coils,Roofing Prepainted Galvanized Steel Coils |
||

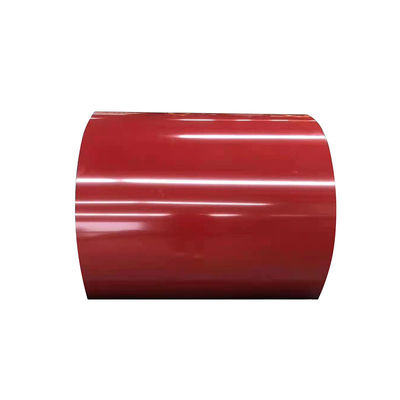

Garner red hot dipped prepainted galvanized steel coils for roofing
PPGI is pre-painted galvanized iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.
The term is an extension of GI which is a traditional abbreviation for Galvanized Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.
The hot dip metallic coating process is also used to manufacture steel sheet and coil with coatings of aluminium, or alloy coatings of zinc/aluminium, zinc/iron and zinc/aluminium/magnesium which may also be factory pre-painted. While GI may sometimes be used as a collective term for various hot dip metallic coated steels, it more precisely refers only to zinc coated steel. Similarly, PPGI may sometimes be used as a general term for a range of metallic coated steels that have been pre-painted, but more often refers more precisely to pre-painted zinc coated steel.
Zinc coated steel substrate for PPGI is typically produced on a continuous galvanizing line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.
| What is Prepainted Galvanized Steel Coil (PPGI)? |
PPGI is pre-painted galvanized steel coils and sheets, also known as pre-coated steel, color coated steel, PPGI steel coil etc.
Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pre-treatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used to include polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.
| Specification of PPGI Steel Coil |
|
Product name
|
PPGI cold rolled prepainted galvanized steel coils
|
|
Standard
|
AISI,ASTM,BS,DIN,GB,JIS
|
|
Material Grade
|
DX51D DX52D DX53D DX54D DX55D DX56D DX57D,
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570SGHC SGH340 SGH400 SGH440 SGH490 SGH540
or Customer’s Requirement
|
| Form | GI/GL/PPGI/PPGL Coils/Sheets, Corrugated Coils/Sheets |
|
Place of Origin
|
Shandong,China(Mainland)
|
|
Surface Treament
|
Coated
|
|
Coating Material
|
PE,SMP,HDP,PVDF
|
| Color |
red, off white, blue, or as request
|
| Base Steel | Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel |
|
Top Coating Thickness
|
9μm-15μm
|
|
Back Coated Thickness
|
5μm-7μm
|
|
Thickness
|
0.2-1.8mm
|
|
Width
|
500-1500mm
|
| Zinc Coating | Z60-180g/m² |
|
Coil ID
|
508/610mm
|
|
Coil Weight
|
4-8 tons
|
|
Packaging
|
Standard export seaworthy packing
|
|
Transport
|
Ocean Shipping
|
|
Port
|
Tianjin/Qingdao/Shanghai
|
|
Delivery Time
|
8-15days after receipt of deposit
|
|
Payment
|
30% T/T for deposit and the balance against the copy of BL
|
| Applications of Color Coated Galvanized Steel Coils (PPGI) |
Pre-painted galvanised steel coils (PPGI) have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.
