Product Details:
|
| Name: | Hot Dip PPGI Steel Coils | Grade: | DX51D, SGCC, G550, S550, S350, |
|---|---|---|---|
| Standard: | AISI, ASTM, BS, DIN, GB, JISJIS3302, EN 10142, ASTM A653, SGCC/SGCH,European Standard, ASTM A792 | Width: | 600mm - 1250mm |
| Thickness: | 0.12-1.5mm | Tolerance: | ±5% |
| Technique: | Hot Dip | Forms: | Steel Coil, Color Coated Steel Sheet, Color Coated Steel Sheet |
| Surface: | Polyester(PE) / Silicon Modified Polyester / High Weatherability Polyester / PVDF / Epoxy | Color: | Red, Blue, Orange Or As Request |
| Coating: | Z30-Z180 | Coating Thickness: | Top 15-25, Back 5-18 |
| Coating Type: | EP, PE, HDP, SMP, PVDF | Coil ID: | 508 Mm/610 Mm |
| Coil Weight: | 3-7 Tons | Processing: | Bending, Welding, Decoiling, Cutting, Punching |
| Payment Term: | 30%TT+70% Balance | Package: | Standard Sea Worthy Package |
| Application: | Building Industry, Decoration, Construction, Roofing | ||
| High Light: | PPGI Prepainted Steel Coil,SGCC Prepainted Steel Coil,Cold Rolled Steel Sheet In Coil |
||

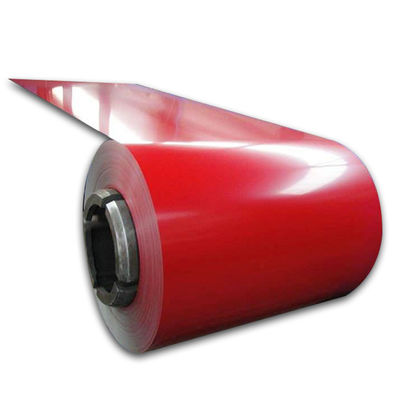

Factory Manufacture prepainted coil SGCC cold rolled steel sheet in coil
Hot Dip PPGI Prepainted Galvanized Steel Coils
Shandong Fulilai Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.
| What is Prepainted Galvanized Steel Coil (PPGI)? |
PPGI is pre-painted galvanized steel coils and sheets, also known as pre-coated steel, color coated steel, PPGI steel coil etc.
Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pre-treatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used to include polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.
| Specification of PPGI Steel Coil |
|
Product name
|
PPGI cold rolled prepainted galvanized steel coils
|
|
Standard
|
AISI,ASTM,BS,DIN,GB,JIS
|
|
Material Grade
|
DX51D DX52D DX53D DX54D DX55D DX56D DX57D,
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570SGHC SGH340 SGH400 SGH440 SGH490 SGH540
or Customer’s Requirement
|
| Form | GI/GL/PPGI/PPGL Coils/Sheets, Corrugated Coils/Sheets |
|
Place of Origin
|
Shandong,China(Mainland)
|
|
Surface Treament
|
Coated
|
|
Coating Material
|
PE,SMP,HDP,PVDF
|
| Color |
red, off white, blue, or as request
|
| Base Steel | Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel |
|
Top Coating Thickness
|
15μm-25μm
|
|
Back Coated Thickness
|
5μm-20μm
|
|
Thickness
|
0.12-1.5mm
|
|
Width
|
600-1500mm
|
| Zinc Coating | Z30-275g/m² |
|
Coil ID
|
508/610mm
|
|
Coil Weight
|
2.5-8 tons
|
|
Packaging
|
Standard export seaworthy packing
|
|
Transport
|
Ocean Shipping
|
|
Port
|
Tianjin/Qingdao/Shanghai
|
|
Delivery Time
|
8-15days after receipt of deposit
|
|
Payment
|
30% T/T for deposit and the balance against the copy of BL
|
| Applications of Color Coated Galvanized Steel Coils (PPGI) |
Pre-painted galvanised steel coils (PPGI) have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.
