Product Details:
|
| Name: | PPGL | Thickness: | 0.15-3.0mm |
|---|---|---|---|
| Width: | 5-1850mm | Tolerance: | ±1% |
| Standard: | AiSi, ASTM, Bs, DIN, GB, JIS | Zinc Coating: | 30-150g/m² |
| Processing Service: | Bending, Punching, Cutting, Decoiling | Surface: | Color Coated, Wooden Grain Coated, Marble Coated |
| Form: | Coils, Strip,Sheet, Etc. | Technique: | Cold Rolled |
| Special Use: | High-strength Steel Plate | Application: | Building Industry, Decoration, Construction |
| Payment: | T/T 30% Advanced, Balance Against BL Copy | Price Term: | FOB CIF EXW |
| Packing: | Standard Seaworthy Packaging | Delivery: | 10-15 Days |
| High Light: | DX51D PPGL Steel Coil,Pre Painted PPGL Steel Coil,Galvalume RAL Color Coated Steel Coil |
||

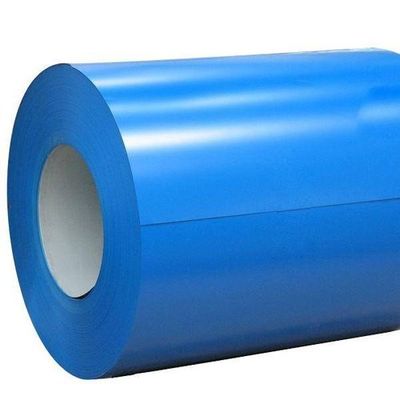

Color Coated Aluminum Zinc Steel Coil Pre-Painted Gavalume Sheet/strips
Shandong Fulilai Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.
Galvanized plate and aluminum zinc plate difference: Galvanized plate and galvanized plate mainly lies in the difference between the coating, galvanized plate surface evenly distributed a layer of zinc material, the base metal plays an anode protection role, that is to say, zinc material substitution corrosion protection of the use of the base metal, only when all the zinc corrosion can be damaged to the inside of the base metal The surface coating of the aluminized zinc plate is composed of 55% aluminum,43.5% zinc and a small amount of other elements. The surface of the aluminized zinc coating is honeycomb structure, which is composed of aluminum Containing zinc, in this case, aluminium zinc plating coating has anodic protection role, but on the other hand due to the shrinking of zinc content on the one hand, because of the zinc material by aluminum bag not the role of electrolysis anode protection so greatly reduced, so once the aluminium zinc plate is cut, the cut off the edge of the protection of basic loss was will soon be under the condition of corrosion, so aluminium zinc plate should be as little as possible Cutting, once cutting after the application of anti-rust paint or zinc rich paint to protect the edge, to make the plate life extension
| What is Prepainted Steel? |
Pre-painted steel is a corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. Fulilai Steel Group produces pre-painted steel sheets and coils coils by directly applying primer and paint on to steel sheet in a coating line. The finished products can easily be roll formed, bent, and stamped without tarnishing the paint quality.
| Specification of Pre-Painted Gavalume Steel Coils (PPGL) |
| Products | GI/GL | PPGI/PPGL | CR | Corrugated Steel Sheet |
| Grade | SGCC, CGCC, SPCC, ST01Z, DX51D, A653 | |||
| Standard | JIS G3302 / JIS G3312 / ASTM A653M / A924M 1998 / GBT12754-2006,GB/T9761-1988, GB/T9754-1988, GB/T6739-1996, HG/T3830-2006, HG/T3830-2006, GB/T1732-93, GB/T9286-1998, GB/T1771-1991, GB/T14522-93 |
|||
| Origin | China(Mainland) | |||
| Raw material | SGCC, SPCC, DC51D, SGHC,A653, 201,202,321,301,302,304,304L,316,316L, 310,310S,409,410,430,439,443,445,441 and so on |
|||
| Certificate | ISO9001.ISO14001.OHSAS18001 | |||
| Technique | hot rolled/ cold rolled |
pre-painted, hot rolled /cold rolled |
cold rolled | pre-painted, hot rolled/cold rolled |
| Thickness | 0.12mm-2.0mm | |||
| Width | 30mm-1500mm | |||
| Tolerance | thickness+/-0.01mm | |||
| T Bending (top/back) |
≤ 3T/4T | |||
| Anti-MEK Wiping | 100times | |||
| Zinc coating | ≤275g /m2 | |||
| Color options | RAL Color System or as per buyer’s color sample. | |||
| Type of coating structure |
2/1 or 2/2 coating, or customized |
2/1 or 2/2 coating, or customized |
||
| Coil weight | 3-8MT or as you required |
3-8MT or as you required |
12-13MT or as you required |
3-8MT or as you required |
| Type | Coil or Plate | |||
| Spangle | big / small / no spangle | |||
| Hardness | Soft---full hard | |||
| Supply ability(tons per year/production lines) | 550,000/5 | 450,000/6 | 280,000/4 | 280,000/4 |
| Payment term | T/T; L/C; T/T & L/C | |||
| Price | FOB/CFR/CNF/CIF | |||
| Delivery time |
around 10-15 days after T/T payment or L/C is received. |
|||
| Prepainted Galvalume Steel Coil/PPGL coating film introduction |
Top paint film:
RPE, SMP, HDP,PVDF,Other paints.
Function: It functions as a sunlight proof cover, especially prevent the destroy by the ultraviolet rays. When the top paint film reaches a certain thickness, it forms a compact cover, and reduce the water and oxygen permeability.
Primer paint film:
Polyurethane, Epoxy, PE
Function:Strengthen the adhesiveness between the top paint film and the basemetal. Even permeable water happens, the top paint film will not peel off. There is corrosion inhibitor which is corrosion resistance. Polyurethane is necessary for higher processing flexibility and weather resistance requirements.
Passivation layer
Function:Increase the adhesion between the metallic layer and coating film. Extend life span also.
Metallic coating
Function:The metallic coating provides the fundamental protection for the steel.
The popular coating metal are galvanize, galvalume and other alloyed metals.
Substrate steel
Cold rolled steel is usually used as substrate, it decides the mechanical properties and the steel shape and flatness.
Back paint film
Epoxy, Modified PE.
Back paint can sustain color in good condition and has good binding.
Contact Person: Amber
Tel: +8619963470989
