Product Details:
|
| Item Name: | HEB450 Beams ASTM A36 Structural Steel European Standard Wide Flange H Beam | Standard: | ASTM |
|---|---|---|---|
| Grade: | A572 GR50 | Thickness: | 2-20mm |
| Flange Width: | 50-400mm | Web Width: | 86-900mm |
| Flange Thickness: | 8-70mm | Web Thickness: | 6-25mm |
| Model Number: | HW, HM, HN, HT | Tolerance: | ±2.0-4.0 |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting | Material: | SS400 SS490 S235JR S275JR A36 |
| Service Treatment: | Zinc Coating, | ||
| High Light: | Zinc Coating Structural Carbon Steel,GR50 Structural Carbon Steel,Welded Structural Carbon Steel H Beam |
||

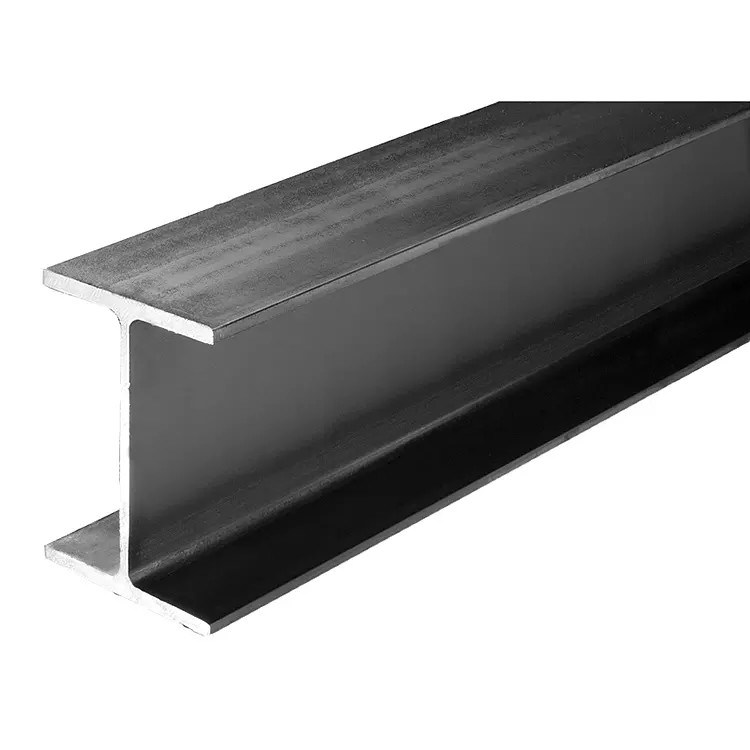

GR50 Zinc Coating Structural Carbon Steel Profile H Iron Beam Welded
I/H steel are high-stre ngth, long-span structuraltimber bea ms w hich are used in construction nd engineering projects. I and H steel sections are different in dimensions, strength and pplications.I ste el consists fla nges (The horizontal section) and Web (verticalelement). The web resists shear fo rces while the flanges resist most ofthe bending mo me nt. it is the most frequent for steel buildings, bridge and civil project
Specification of Carbon steel H beam
|
Product name
|
Steel shape hot rolled H beam
|
|---|---|
|
Brand name
|
Shine-Steel
|
|
Shape
|
H&I beam
|
|
Technique
|
Hot rolled / Welded
|
|
Standard
|
JIS, ASTM, EN, GB.
|
|
Materials
|
Q235B, SS400B, A-36, Q235, SS400, S355J2, S235JR, S275JR, etc.
|
|
Size
|
H Beam:100*50*5*7mm-912*302*18*34mm I Beam:100*68*4.5mm-630*178*15mm
|
|
Surface treatment
|
Welding, Cutting, Punching, Galvanizing, Painting
|
|
Length
|
6-12m or customized
|
|
Delivery time
|
In 10-30 days after receiving the deposit or L/C
|
|
Trade terms
|
FOB, CFR, CIF
|
|
Payment terms
|
T/T or L/C
|
|
Size
|
H(mm)
|
Tolerance
(mm) |
B(mm)
|
Tolerance
(mm) |
Thickness
(mm) |
Tolerance
(mm) |
Weight
(kg/m) |
|
8#
|
80
|
±2.0
|
50
|
±2.0
|
4.5
|
±0.5
|
7.520
|
|
10#
|
100
|
±2.0
|
68
|
±2.0
|
4.5
|
±0.5
|
11.261
|
|
12#
|
120
|
±2.0
|
74
|
±2.0
|
5.0
|
±0.5
|
13.987
|
|
14#
|
140
|
±2.0
|
80
|
±2.0
|
5.5
|
±0.5
|
16.890
|
|
16#
|
160
|
±2.0
|
88
|
±2.5
|
6.0
|
±0.5
|
20.513
|
|
18#
|
180
|
±2.0
|
94
|
±2.5
|
6.5
|
±0.5
|
24.143
|
|
20A
|
200
|
±3.0
|
100
|
±3.0
|
7.0
|
±0.7
|
27.929
|
|
20B
|
200
|
±3.0
|
102
|
±3.0
|
9.0
|
±0.7
|
31.069
|
|
22A
|
220
|
±3.0
|
110
|
±3.0
|
7.5
|
±0.7
|
33.070
|
|
22B
|
220
|
±3.0
|
112
|
±3.0
|
9.5
|
±0.7
|
36.524
|
|
25A
|
250
|
±3.0
|
116
|
±3.0
|
8.0
|
±0.7
|
38.050
|
|
25B
|
250
|
±3.0
|
118
|
±3.0
|
10.0
|
±0.7
|
42.030
|
|
28A
|
280
|
±3.0
|
122
|
±3.0
|
8.5
|
±0.7
|
43.492
|
|
28B
|
280
|
±3.0
|
124
|
±3.0
|
10.5
|
±0.7
|
47.888
|
|
30A
|
300
|
±3.0
|
126
|
±3.0
|
9.0
|
±0.7
|
48.084
|
|
30B
|
300
|
±3.0
|
128
|
±3.0
|
11
|
±0.7
|
52.794
|
IPE BEAMS
|
Size
|
Depth xFlange width
(mm)
|
Web Thickenss
(mm)
|
Flange Thickness
(mm)
|
Weight
(kg/m)
|
|
IPE80
|
80x46
|
3.8
|
5.2
|
6
|
|
IPE100
|
100x55
|
4.1
|
5.7
|
8.1
|
|
IPE120
|
120x64
|
4.4
|
6.3
|
10.4
|
|
IPE140
|
140x73
|
4.7
|
6.9
|
12.9
|
|
IPE160
|
160x82
|
5.0
|
7.4
|
15.8
|
|
IPE180
|
180x91
|
5.5
|
8.0
|
18.8
|
|
IPE200
|
200x100
|
5.6
|
8.5
|
22.4
|
|
IPE220
|
220x110
|
5.9
|
9.2
|
36.2
|
|
IPE240
|
240x120
|
6.2
|
9.8
|
30.7
|
|
IPE270
|
270x135
|
6.6
|
10.2
|
36.1
|
Application of Carbon Steel H Beam
H section steel flange wide web thin specifications more flexible, used in a variety of truss structure can save metal 15%~20% due to its flange inside and outside parallel, edge end is a right Angle, easy to assemble and combine into a variety of components, thus saving welding riveting workload about 25%, can greatly speed up the construction of the project, shorten the construction period
Because of the advantages mentioned above, H-beam application, mainly used in: all kinds of civil and industrial building structures; All kinds of large-span industrial plants and modern high-rise buildings, especially in areas with frequent seismic activity and industrial plants under high temperature working conditions; Large Bridges with large cross section stability and large span are required; Heavy equipment; Expressway; Ship frame; Mine support; Foundation treatment and dam works; Various machine components
1. Low processing cost: the cost of hot dip galvanized rust is lower than the cost of other paint coating;
2 durable: hot dip galvanized Angle steel with gloss, uniform zinc layer, no leakage, no slip, strong adhesion, strong corrosion resistance, in the suburban environment, the standard hot dip galvanized rust thickness can be maintained for more than 50 years without repair; In urban and offshore areas, the standard hot-dip galvanized coating can be maintained for 20 years without repair. 3 good reliability: galvanized layer and steel is metallurgical combination, become a part of the steel surface, so the durability of the coating is more reliable;
4 coating toughness: galvanized layer forms a special metallurgical structure, this structure can withstand mechanical damage in transport and use;
5 protection: each part of the plated parts can be plated with zinc, even in the sag and hidden place can be protected;
6 save time and effort: galvanizing process is faster than other coating construction method, and can avoid the time required to brush on the site after installation
