Product Details:
|
| Item Name: | HEB450 Beams ASTM A36 Structural Steel European Standard Wide Flange H Beam | Standard: | ASTM |
|---|---|---|---|
| Grade: | A572 GR50 | Thickness: | 2-20mm |
| Flange Width: | 50-400mm | Web Width: | 86-900mm |
| Flange Thickness: | 8-70mm | Web Thickness: | 6-25mm |
| Model Number: | HW, HM, HN, HT | Tolerance: | ±2.0-4.0 |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting | Material: | SS400 SS490 S235JR S275JR A36 |
| Service Treatment: | Zinc Coating, | ||
| High Light: | Tolerance 2mm Structural Carbon Steel,ASTM A572 Structural Carbon Steel,Q345 Structural Steel H Beam |
||
ASTM A572 Q345 H I Steel Profiles Iron Beams For Building Structural Steel H Beam Price Per TON

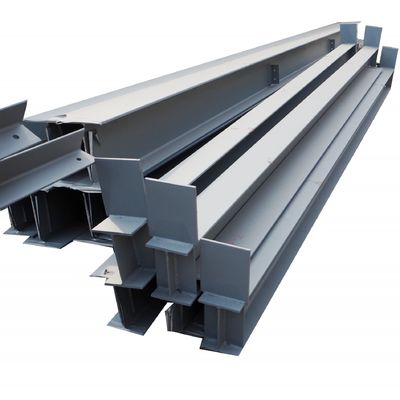

Carbon Steel H Beam
H-section steel is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its section is the same as the English letter "H". Since the various parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance, simple construction, cost saving and light structure in all directions.
| Specification of Carbon Steel H Beam |
|
Grade
|
Q235,Q345,SS400,SS490,S235/S275,A36,A992,A572gr50
|
|---|---|
|
H*B
|
100*100-900*300mm
|
|
T1
|
4.5-21mm
|
|
T2
|
7-35mm
|
|
Technique
|
Hot Rolled
|
|
Application
|
Mechanical&manufacture,Steel structure,Shipbuilding,
|
|
MOQ
|
20 Metric Ton/Metric Tons
|
|
Packaging Details
|
Bundled with firm steel straps, easy for loading
|
|
Payment Terms
|
L/C , T/T or Western Union
|
|
Supply Ability
|
2000 Metric Ton per Month
|
National standard
STEEL I BEAM & IPE BEAM
|
Size
|
H(mm)
|
Tolerance
(mm) |
B(mm)
|
Tolerance
(mm) |
Thickness
(mm) |
Tolerance
(mm) |
Weight
(kg/m) |
|---|---|---|---|---|---|---|---|
|
8#
|
80
|
±2.0
|
50
|
±2.0
|
4.5
|
±0.5
|
7.520
|
|
10#
|
100
|
±2.0
|
68
|
±2.0
|
4.5
|
±0.5
|
11.261
|
|
12#
|
120
|
±2.0
|
74
|
±2.0
|
5.0
|
±0.5
|
13.987
|
|
14#
|
140
|
±2.0
|
80
|
±2.0
|
5.5
|
±0.5
|
16.890
|
|
16#
|
160
|
±2.0
|
88
|
±2.5
|
6.0
|
±0.5
|
20.513
|
|
18#
|
180
|
±2.0
|
94
|
±2.5
|
6.5
|
±0.5
|
24.143
|
|
20A
|
200
|
±3.0
|
100
|
±3.0
|
7.0
|
±0.7
|
27.929
|
|
20B
|
200
|
±3.0
|
102
|
±3.0
|
9.0
|
±0.7
|
31.069
|
|
22A
|
220
|
±3.0
|
110
|
±3.0
|
7.5
|
±0.7
|
33.070
|
|
22B
|
220
|
±3.0
|
112
|
±3.0
|
9.5
|
±0.7
|
36.524
|
|
25A
|
250
|
±3.0
|
116
|
±3.0
|
8.0
|
±0.7
|
38.050
|
|
25B
|
250
|
±3.0
|
118
|
±3.0
|
10.0
|
±0.7
|
42.030
|
|
28A
|
280
|
±3.0
|
122
|
±3.0
|
8.5
|
±0.7
|
43.492
|
|
28B
|
280
|
±3.0
|
124
|
±3.0
|
10.5
|
±0.7
|
47.888
|
|
30A
|
300
|
±3.0
|
126
|
±3.0
|
9.0
|
±0.7
|
48.084
|
|
30B
|
300
|
±3.0
|
128
|
±3.0
|
11
|
±0.7
|
52.794
|
IPE BEAMS
|
Size
|
Depth xFlange width
(mm)
|
Web Thickenss
(mm)
|
Flange Thickness
(mm)
|
Weight
(kg/m)
|
|---|---|---|---|---|
|
IPE80
|
80x46
|
3.8
|
5.2
|
6
|
|
IPE100
|
100x55
|
4.1
|
5.7
|
8.1
|
|
IPE120
|
120x64
|
4.4
|
6.3
|
10.4
|
|
IPE140
|
140x73
|
4.7
|
6.9
|
12.9
|
|
IPE160
|
160x82
|
5.0
|
7.4
|
15.8
|
|
IPE180
|
180x91
|
5.5
|
8.0
|
18.8
|
|
IPE200
|
200x100
|
5.6
|
8.5
|
22.4
|
|
IPE220
|
220x110
|
5.9
|
9.2
|
36.2
|
|
IPE240
|
240x120
|
6.2
|
9.8
|
30.7
|
|
IPE270
|
270x135
|
6.6
|
10.2
|
36.1
|
| Application of Stainless Steel H Beam |
H section steel flange wide web thin specifications more flexible, used in a variety of truss structure can save metal 15%~20% due to its flange inside and outside parallel, edge end is a right Angle, easy to assemble and combine into a variety of components, thus saving welding riveting workload about 25%, can greatly speed up the construction of the project, shorten the construction period
Because of the advantages mentioned above, H-beam application, mainly used in: all kinds of civil and industrial building structures; All kinds of large-span industrial plants and modern high-rise buildings, especially in areas with frequent seismic activity and industrial plants under high temperature working conditions; Large Bridges with large cross section stability and large span are required; Heavy equipment; Expressway; Ship frame; Mine support; Foundation treatment and dam works; Various machine components
In metal structures with different requirements, whether it bears bending moment, pressure load, and eccentric load, it shows its superior performance. Compared with ordinary I-beam, it can greatly increase the load-bearing capacity and save metal by 10%-40%. H-shaped steel has wide flanges, thin webs, multiple specifications, and flexible use. It can save 15% to 20% of metal when used in various truss structures. Because the flanges are parallel inside and outside, and the edges are at right angles, it is easy to assemble and combine into various components, which can save about 25% of the welding and riveting workload, which can greatly accelerate the construction speed of the project and shorten the construction period.
