Product Details:
|
| Product Name: | Stainless Steel Plate | American Standard: | ASTM A240/A240M 304 |
|---|---|---|---|
| Chinese Standard: | GB24511-2009 06Cr19Ni10 | Chemical Composition: | C，Si，Mn ，Cr ，Ni，S ，P，N |
| Elongation(%): | 40% | ||
| High Light: | ASTM 304 Stainless Steel Plate,304 Stainless Steel Plate 1mm,Mill Finish 304 Stainless Steel Sheet Plate |
||

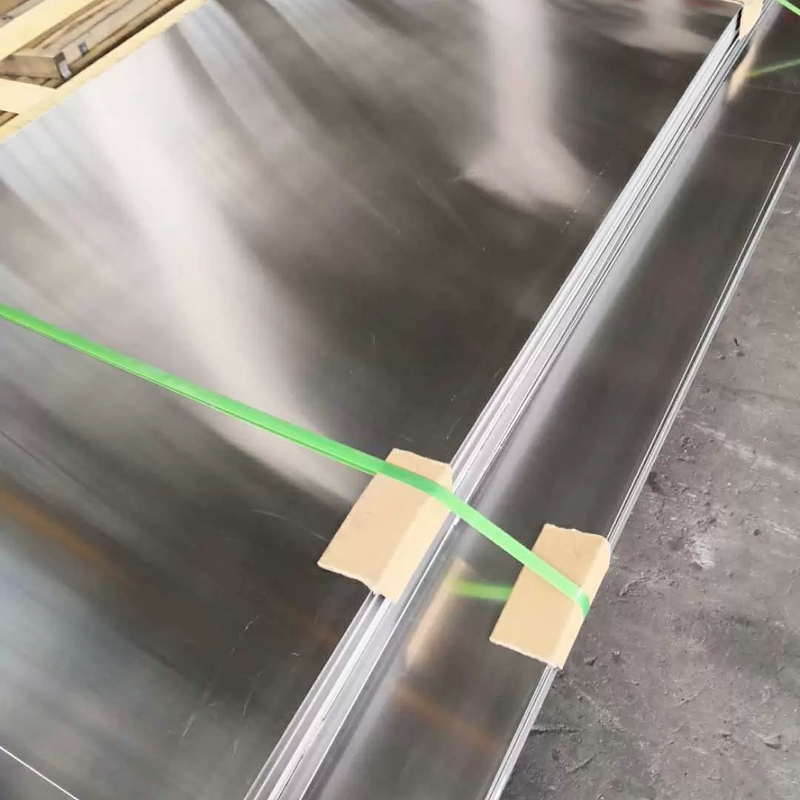

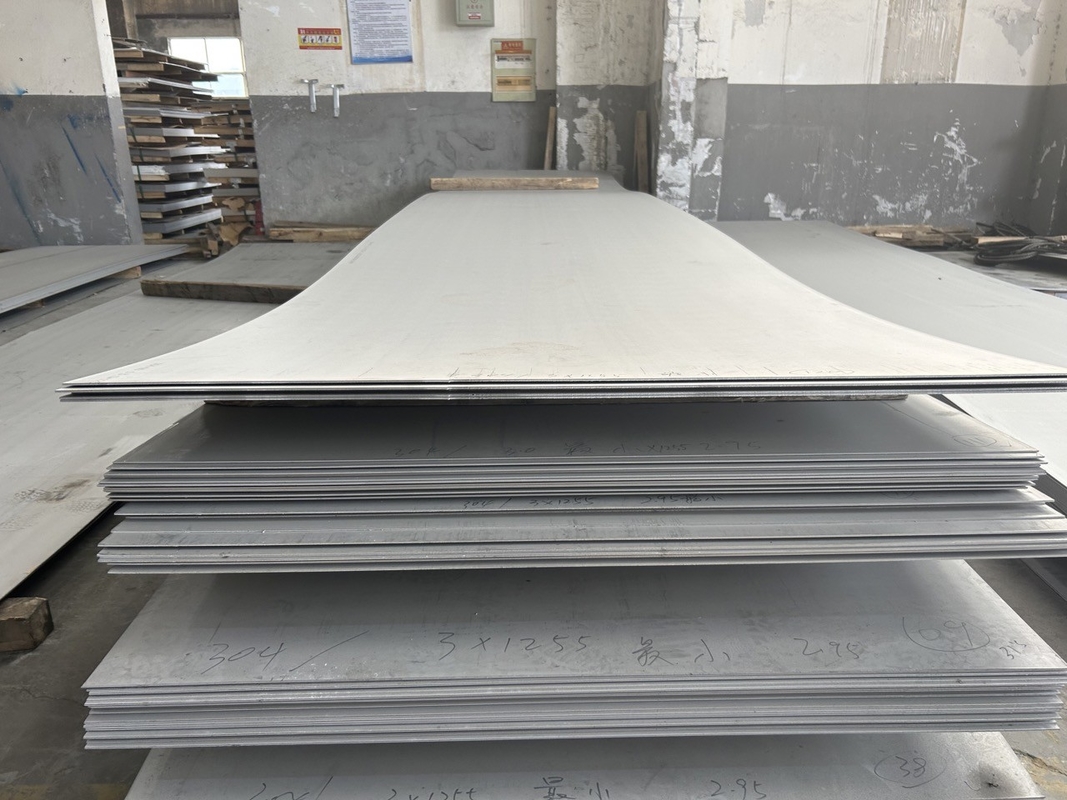

ASTM A240 304 316 1- 6mm Stainless Steel Plate
304 Stainless Steel Plate, is the most popular and economical of the stainless steels. 304 Stainless Plate offers good corrosion resistance to many chemicals as well as industrial atmospheres and marine environments. 304 Stainless Plate may become slightly magnetic when worked and is not heat treatable.
304 Stainless Steel Plate has very good formability and can be readily welded by all common methods. 304/304L dual certified.
General features
The surface of 304 stainless steel plate is beautiful and the possibility of diversification
Good corrosion resistance, durability and corrosion resistance than ordinary steel
High strength, so the possibility of use of thin plate
High temperature oxidation resistance and high strength, so it can resist fire
Normal temperature processing, that is, easy plastic processing
Because do not need surface treatment, so simple, simple maintenance
Clean, high finish
Good welding performance
Stainless Steel 304 Sheet Specification
| Item | 304 Stainless Steel Sheets ( Hot rolled/Cold rolled) |
| Thickness | 0.3-200mm |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm, etc |
| Standard | ASTM,AISI,JIS,GB, DIN,EN |
| Surface |
BA,2B,NO.1,NO.4,4K,HL,8K
|
| Package | It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc. |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Delivery Time | 10-20 days |
Standard
Old Chinese standard: GB/T4237-1992 0Cr18Ni9
New Chinese standard: GB24511-2009 06Cr19Ni10
American standard: ASTM A240/A240M 304
|
304/2B plate tolerance range
|
||||
|
Specifcation
|
The big difference
|
Normal
|
The small difference
|
No tolerance
|
|
0.4MM
|
0.3-0.32
|
0.33-0.37
|
0.37-0.39
|
0.39以上
|
|
0.5MM
|
0.4-0.42
|
0.43-0.47
|
0.47-0.49
|
0.49以上
|
|
0.6MM
|
0.5-0.52
|
0.53-0.56
|
0.57-0.59
|
0.59以上
|
|
0.7MM
|
0.6-0.62
|
0.63-0.67
|
0.67-0.69
|
0.69以上
|
|
0.8MM
|
0.7-0.72
|
0.73-0.77
|
0.74-0.79
|
0.79以上
|
|
0.9MM
|
0.8-0.82
|
0.83-0.87
|
0.87-0.89
|
0.89以上
|
|
1.0MM
|
0.89-0.9
|
0.91-0.94
|
0.94-0.99
|
0.99以上
|
|
1.2MM
|
1.02-1.08
|
1.09-1.15
|
1.16-1.18
|
1.18以上
|
|
1.5MM
|
1.32-1.38
|
1.39-1.45
|
1.46-1.48
|
1.48以上
|
|
2.0MM
|
1.72-1.79
|
1.8-1.86
|
1.87-1.9
|
1.9以上
|
|
2.5MM
|
2.23-2.36
|
2.32-2.42
|
2.42-2.47
|
2.48以上
|
|
3.0MM
|
2.7-2.77
|
2.78-2.85
|
2.85-2.9
|
2.9以上
|
