Home ProductsGalvanized Steel Coil Sheet

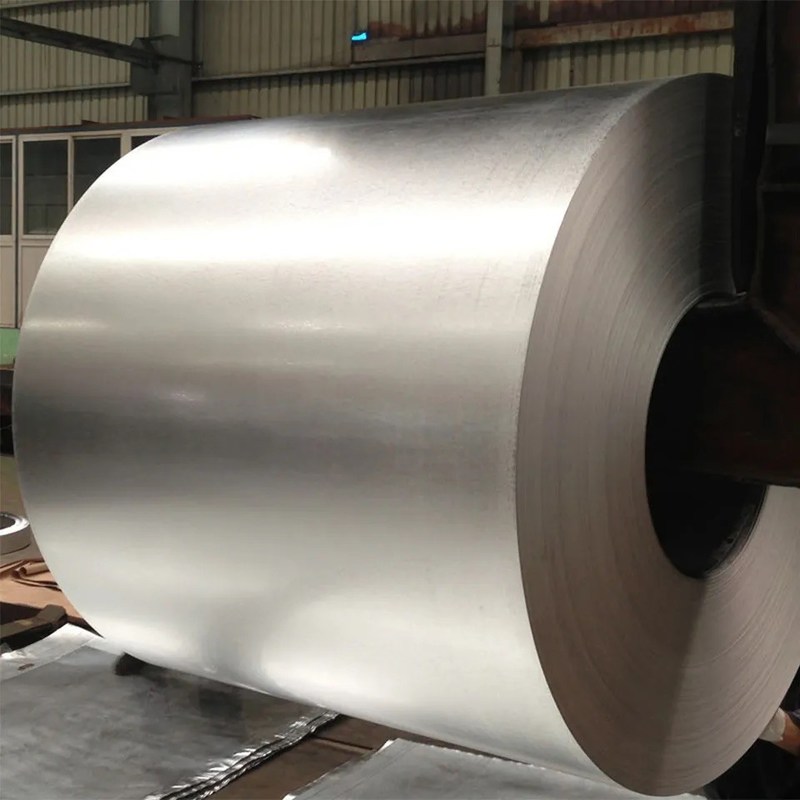

Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275

I'm Online Chat Now

Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275

Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275
Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275 Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275 Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275

Large Image :  Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275

Product Details:
Place of Origin: China
Brand Name: Fulilai
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: Negotiable
Packaging Details: Sea-worthy Package
Delivery Time: 15-21days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 100000 Tons per Month

Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275

Description
Name: Galvanized Steel Sheet Coil Plate Thickness: 0.12-4.5mm
Tolerance: ±10% Standard: ASTM,AISI,JIS,DIN,GB
Surface: BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D Processing Service: Decoiling, Cutting, Punching
Grade: 300 Series Hard: Soft, Hard, Half Hard, Quarter Hard, Spring Hard Etc.
Form: Coils, Strip Etc. Technique: Cold Rolled
Special Use: High-strength Steel Plate Application: Construction,Kitchenware,Medical Instruments,Industry,Decoration
MOQ: 5 Tons Payment: T/T 30% Advanced, Balance Against BL Copy
Packing: Standard Seaworthy Packaging Delivery: 10-15 Days
Price Term: FOB CIF EXW
High Light:

Z275 Galvanized Steel Coil Sheet

,

JIS G550 Galvanized Steel Coil Sheet

,

4.5mm Hot Dipped Galvanized Steel Coils

JIS G550 G40 G60 Z275 Hot Dipped Galvanized Steel Coil/Sheet/Strip

Galvanized Steel Coils/Sheet/Plate

Galvanized coil, the thin steel plate immersed in the melting zinc tank, so that the surface adhesion of a layer of zinc thin steel plate is mainly made of continuous galvanizing process production, that is, the steel plate into a roll of continuous immersion in the melting zinc plating tank made of galvanized steel plate; Alloyed galvanized steel plate this steel plate is also made by hot dip, but after the slot, it is immediately heated to about 500, so that it generates zinc and iron alloy film this galvanized coil has good coating tightness and weldability


Thickness 0.12mm-4.5mm Galvanized Steel Coil Sheet Hot Dipped JIS G550 G40 G60 Z275 0

Shandong Fulilai Steel Group is a leading supplier of galvanized steel sheet & coil. Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. There are two main processes used to produce galvanized steel: continuous hot dipping and electro-galvanizing.
The hot dipping process consists of passing the steel through a bath of molten zinc, while the electro-galvanizing process consists of the application of zinc through electrolytic disposition. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.
A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.



 Specification of GI Sheet&Coils&Plate



Product Name
Galvanized Steel Coil,Galvalume Steel Coil,Zinc,Aluzinc,GI,GL,HDGI,HDGL
Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,
S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement
Type
Coil/Sheet/Plate/Strip
Material
CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
Thickness
0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
Width
600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
Zinc Coating
Z30g/m2-Z350g/m2
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Coil Weight
3 Tons -8Tons
Coil ID
508mm/610mm



 Applications of GI Sheet&Coils&Plate





Fulilai's galvanized steel, hot dipped galvanized steel coil and galvanized steel sheet have a wide variety of uses across numerous industries:

  • Exterior building products
  • Ductwork
  • HVAC products
  • Flashing
  • Electrical boxes and other electrical products
  • Roofing
  • Doors
  • Garage doors
  • Sashes
  • Safety fencing
  • Automotive parts
  • Appliances
  • Commercial and residential steel framing
  • Parking lots
  • Truss plates
  • Metal building purlins
