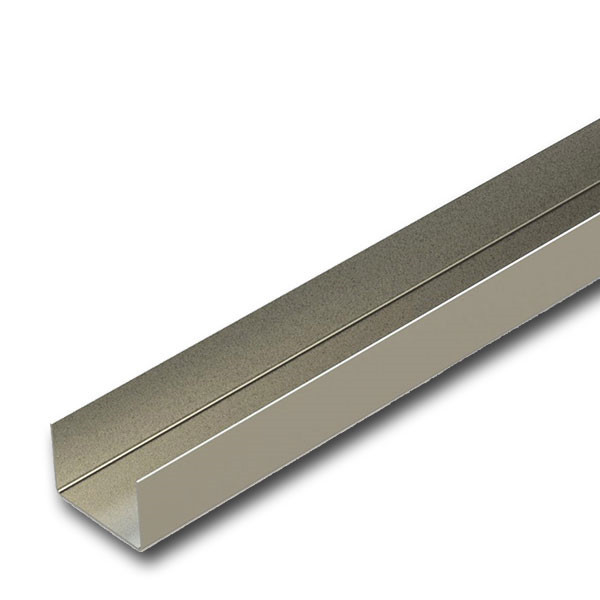

A36 420MPa Stainless Steel U Channel Hot Rolled SUS 304 300mmx300mm

A36 420MPa Stainless Steel U Channel Hot Rolled SUS 304 300mmx300mm

420MPa Stainless Steel U Channel

Stainless Steel U Channel 300mmx300mm

A36 Hot Rolled Steel Channel

Place of Origin:

China

Brand Name:

TALAT

Certification:

ISO 9001

Model Number:

300 Series

Contact Us

Request A Quote
Product Details
Name:
304 Stainless Steel Channel
Brand:
Tisco,Baosteel,Lisco, Etc.
Standard:
GB DIN ISO JIS ASTM
Thickness:
0.3-6mm (Cold Rolled), 3-100mm(Hot Rolled)
Length:
As Requestf
Width:
1000mm/1219mm/1220mm/1500mm/1800mm/2000mm
Finish:
2B Embossed, Vibration,mirror, Hairline
Application:
Steel Structural,doors, Railway And Traffice,vehchile, Mechine
Payment & Shipping Terms
Minimum Order Quantity
1 Ton
Price
Negotiable
Packaging Details
Sea-worthy Package
Delivery Time
10-15days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 tons/month
Product Description

U Channel Stainless Steel Structure SUS 304 Hot Rolled Channel

304 Stainless Steel Channel

Stainless Steel 304 HR Channels, Stainless Steel 304 Channels, SS UNS S30400 Channel, Stainless Steel 304 Laser Fused Channels, 304 Stainkess Steel Hot Rolled Channel, 304 SS Cold Rolled Channel, 304 Stainless Steel Channel Stockist, DIN 1.4301 Channel, SS 304 Channel, Stainless Steel 304 Channels Supplier in China,ASTM 304 Stainless Steel U Channel,304 Stainless Steel C Channel, C Channel manufacture in China.

  What is 304 Stainless Steel Channel



304 Stainless Steel Channels are made with an alloy mixture of chromium and nickel in the ratio of 18% chromium and 8% nickel with minimal additions of carbon. The chromium content in the SS UNS S30400 Channels helps them to exhibit higher resistivity against corrosion and oxidation. The Nickel Content helps the ASTM A276 SS 304 Channels to have better formability and better stability. The carbon content in the SS 304 Channels makes them more versatile and applicable. These SS 1.4401 Channels are known to have great formability and their fabrication process is also quite simple. Due to these properties, the ASTM A276 SS 304 Channels have found various applications in deep-drawn marine environments. The SS 304 Channels can resist oxidation up to ASTM A276 SS 304 Channels in intermittent use and 925°C in continuous use.



 Specification for Stainless Steel 304 Channel



Name Stainless Steel 304 Channel
Standard ASTM,BS,GB,JIS,etc
Grade SS400, ST37-2, A36, S235JRG1, Q235, Q345 etc
Thickness  3.0mm-120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Size 40mm*20mm~300mm*300mm
Form Channel, etc.
Technique Hot rolled & cold rolled
Strength of extension A36/420MPa S355JR/485MPa
Application Steel structural,doors, railway and traffice,vehchile, machine



SPECIFICATION
SIZE



 KG/M



5#
50*37*4.5
5.438
6.3#
63*40*4.8
6.634
8#
80*43*5.0
8.045
10#
100*48*5.3
10.007
12#
120*53*5.5
12.059
14#A
140*58*6.0
14.535
14#B
140*60*8.0
16.733
16#A
160*63*6.5
17.24
16#B
160*65*8.5
19.752
18#A
180*68*7.0
20.174
18#B
180*70*9.0
23
20#A
200*73*7.0
22.337
20#B
200*75*9.0
25.777
22#A
220*77*7.0
24.999
22#B
220*79*9.0
28.453
25#A
250*78*7.0
27.41
25#B
250*80*9.0
31.335
25#C
250*82*11.0
35.26
28#A
280*82*7.5
31.427
28#B
280*84*9.5
35.823
28#C
280*86*11.5
40.219
30#A
300*85*7.5
34.463
30#B
300*87*9.5
39.173
30#C
300*89*11.5
43.883
32#A
320*88*8.0
38.083
32#B
320*90*10.0
43.107
32#C
320*92*12.0
48.131
36#A
360*96*9.0
47.814
36#B
360*98*11.0
53.466
36#C
360*100*13.0
59.118
40#A
400*100*10.5
58.928
40#B
400*102*12.5
65.204
40#C
400*104*14.5
71.488





 Application of 304 SS Channels



Stainless steel channel is a hot rolled stainless channel shape with inside radius corners that is ideal for all structural applications where greater strength and superior corrosion resistance is required. Stainless channel has a durable dull, grainy mill finish that is widely used for all types of fabrication projects that are exposed to the following elements: chemical, acidic, fresh water and salt water environments.

The use of stainless steel channels is becoming very popular in numerous industries because of the availability of different sizes, grades, lengths, and finishes. The capabilities and product range of Stainless Structurals plays a very large part in this increase in the market. Stainless steel channels are the answer for any designs and structures needed for corrosive or harsh environments. Uses include platforms, skids, tower supports, rails, stop-logs, guides and more. Some of the many industries that you can find our stainless steel channels include building and construction, architecture, oil and gas, chemical plants, food processing, nuclear plants, water and wastewater, ship building, and transportation.

Steel channel has many uses, mostly structural, and here are a few common examples:



#1 WALLS
Steel channel is often used to build walls for things like garages, warehouses, workshops, and other metal buildings, where they are used like studs in conventional wood framing. The studs run vertically from the bottom plate of the wall to the top plate, and the bear the vertical load of the building. Compared to a wood stud, steel channel can support a much greater amount of weight and it is much more rigid, while the weight difference between wood studs and the steel channel is negligible. Of course, the steel channel is more difficult to install, as it requires welding, bolting or riveting, rather than simply driving nails.



#2 POLE BARN WALLS
Steel channel can be used in pole barns to form the walls, where it is run horizontally from pole to pole to provide an attachment point for the siding on the exterior, which is often sheet metal. It can also be run along the interior to provide support for drywall or other interior wall finishes. By using steel channel instead of wood slats or other products, the distance between the poles can be increased without compromising the integrity of the wall. Over longer lengths, wood can easily warp or twist, making the finished wall appear wavy or uneven, and reducing its rigidity and load-bearing ability.



#3 ROOFS
On light-duty roofs, steel channel can be used as rafters, running from the eaves of the roof to the ridge, where they provide support for the roof deck. By using steel channel instead of wood rafters, the rafters can be smaller and lighter, while still supporting the same amount of weight. Compared to wood, the steel channel is stronger and longer-lasting, and it will not be damaged by rot, fungal decay or moisture, On heavy-duty roofs, I-beams are often used as the rafters and the ridge, and steel channel is placed perpendicularly on top of the rafters every few feet, from the ridge down to the eave. This allows the steel channel to bridge the gaps between the rafters, allowing them to be further apart, and provides an attachment point for the steel deck.



#4 WINDOW AND DOOR FRAMES
Steel channel can be used to create secure frames for windows and doors in both metal and wood-framed buildings. Four pieces are cut with miter joints on each end, and the channel slides over the wall in the window or door opening. This leaves a flat surface in the opening to mount a door or window to, and it is much more secure than frames made from wood. Steel channel is often used to create the frames for commercial fire doors, as well as sub-grade basement doors.



#5 WOOD BEAM SUPPORTS
When extra strength is needed in a wood-framed building, steel channel can be used to increase the rigidity and strength of wooden beams. Wood beams can be placed inside a large steel channel, providing extra strength, while still allowing easy attachment of joists and other components to the wood beam. Alternatively, smaller steel channel can be placed at the bottom of the beam, and supported by posts, to increase the strength of an existing beam during a remodel. It could also be placed on top of the beam as a cap, to provide extra strength during the construction of a home.



#6 VEHICLE FRAMES
Steel channel is often used to construct the frames of vehicles, and is often specially-formed for that particular function. Heavy-duty steel channel is typically used to create the main frame rails, running from the front of the vehicle to the back. Lighter steel channel can also be used to create cross members, braces or for structural components such as radiator supports. When used in a vehicle, steel channel provides enough strength and rigidity to prevent the vehicle from flexing too much, while still allowing a bit of movement to compensate for the torque produced by the engine.



#7 TRAILERS
Steel channel is often used for the construction of trailers, including flatbed trailers, box trailers, and even travel trailers and RVs. Heavy-duty steel channel can be used to create the main frame rails and the tongue, where it attaches to the towing vehicle. It can also be used as joists running perpendicularly to the frame rails to build the structure of the floor, as well as for the outer edges of the trailer. Flooring, made from wood or metal, would then be attached to the joists to finish the deck of the trailer. Steel channel can also be used to create rails to secure the load, or as studs to create the walls and roof of an enclosed trailer, such as a box trailer or a travel trailer.



#8 METAL BUILDINGS
Steel channel is often used in conjunction with I-beams and other steel products to build commercial and industrial buildings, such as warehouses. It can act as girts, studs, braces, joists or other structural components where the added strength of an I-beam is not necessary. It is often welded, bolted or riveted into place, and provides plenty of strength and rigidity for its weight.



Steel channel can be used for many other structures as well, such as railings, stair stringers, bridge trusses or guard rails. It is a versatile product that is strong, light, and relatively maintenance-free.

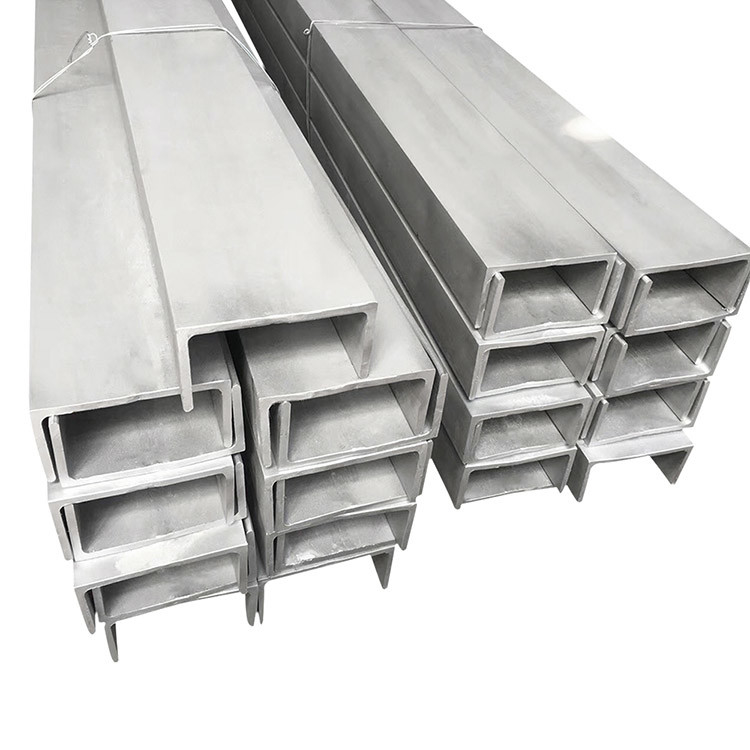

A36 420MPa Stainless Steel U Channel Hot Rolled SUS 304 300mmx300mm 0





 Available Types of 304 SS Channels



Stainless Steel 304 HR Channel | SUS 304 Channels | SS 304 Cold Rolled Channel | 304 SS Hot Rolled Channels | UNS S30400 Galvanized Channels | SS DIN 1.4301 Channels | 304 Stainless Steel C Channel | SS 304 Channel Sections | 304 Stainless Steel Channel Cut To Size | SS 304 Ball Bearing Drawer Channel | Stainless Steel 304 Industrial Channel | ASTM A276 SS 304 U Channel | AISI 304 Steel Box Channel | ASME SA276 Stainless Steel 304 Channel.
