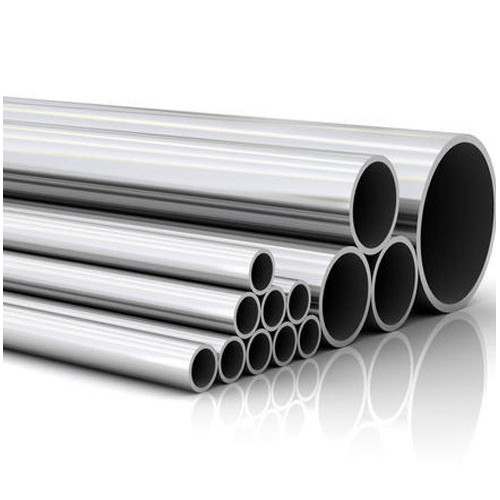

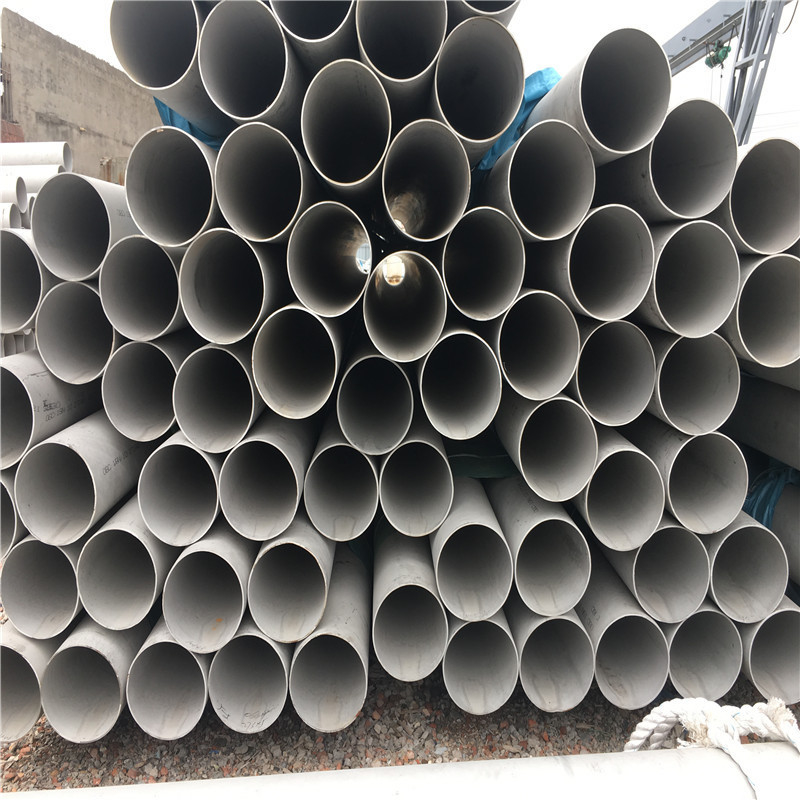

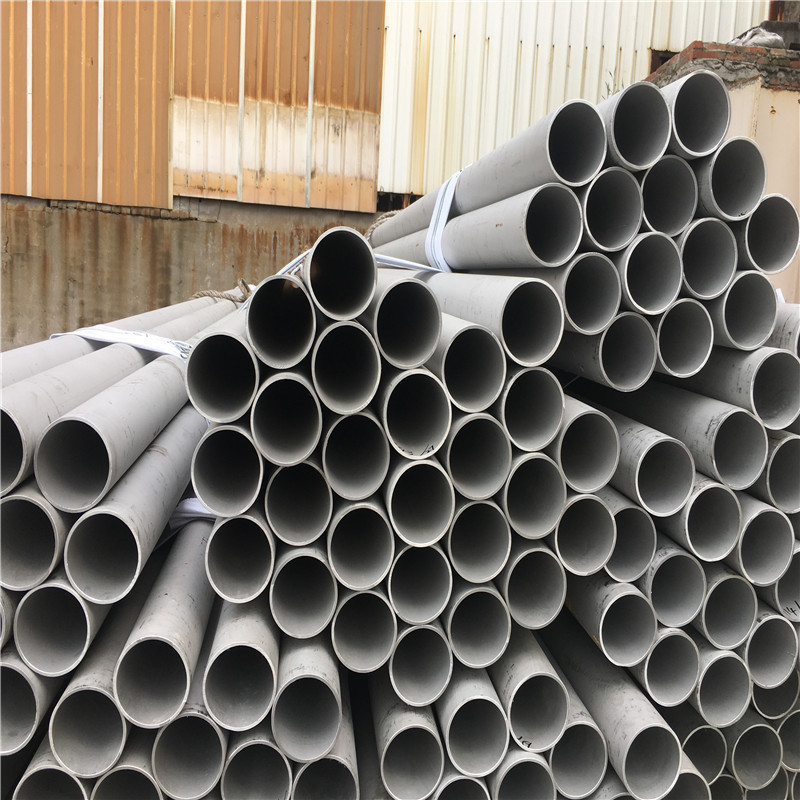

ISO 304 310 410 Stainless Steel Pipe Tube Round ERW Welded Pipe

ISO 304 310 410 Stainless Steel Pipe Tube Round ERW Welded Pipe

ISO 304 Stainless Steel Pipe Tube

410 Stainless Steel Pipe Tube

Round ERW Welded Pipe

Place of Origin:

Shandong, China

Brand Name:

TALAT

Contact Us

Request A Quote
Product Details
Item:
Stainless Steel ERW Pipe
Grade:
201,304,316,316L,410,430,etc
Standard:
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296
Surface:
Polishing,annealing,pickling,bright
Technique:
Hot Rolled And Cold Rolled
Certificate:
ISO
MOQ:
2 Tons
Packing:
Wooden Pallet Or According To Customer's Request
Payment & Shipping Terms
Minimum Order Quantity
2 Tons
Packaging Details
standard vessel shipping packing
Delivery Time
10-15days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000 Tons per Month
Product Description

Product Description:

Stainless steel pipe is widely used in piping systems for conveying fluids or gases. It is made from an alloy that contains nickel and chromium, which gives it corrosion-resistant properties. Moreover, stainless steel pipe has low maintenance because it is highly resistant to oxidation, even at high temperature and chemical environments. Additionally, food and beverage industries as well as pharmaceuticals prefer stainless steel pipe because of its low contamination when they are washed and sanitized.

This type of pipe can be manufactured using several processes, either welding or extrusion. The welding process requires the shaping of steel into a pipe shape and joining its seams. The extrusion process involves heat treatment combined with piercing of a steel rod to be formed into a pipe. The terms “pipe” and “tube” are often confused, but they should be distinguished. Steel pipes are connected according to internal diameter (ID), whereas steel tubes are measured by external diameter (OD) and the wall thickness. Pipes are made to transfer fluids or gases, while tubes are made for manufacturing components with a definite structure.



Features:

  • Product Name: Stainless Steel Pipe Tube
  • Thickness: Customized
  • Outer Diameter: 6mm-2500mm
  • Tolerance: Customized
  • Standard: API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, JIS G3452, BS1387

Technical Parameters:

Product Electric Resistance Welded Steel Pipe
Usage Used for low-pressure liquid delivery, such as water, gas, and oil. Oil drilling and machinery manufacturing, etc.
Standard API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, JIS G3452, BS1387
Out Diameter 21.3mm -660.4mm
Wall Thickness 1.5mm-25.4mm
Length 0.3m – 18m
Steel Grade
API 5L GR B, X42,X46, X56, X60,X65,X70,X80
ASTM A53 GR A, GR B, GR C
EN S275, S275JR, S355JRH, S355J2H
GB Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface Treatment Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black painting or as per customer’s requirement

Applications:

TALAT brand stainless steel pipe tube is widely used in various scenes and application scenarios. It is known for its excellent tolerance, high standard, and various shapes and materials. It is made of 304, 304L, 309S, 310S, 316, 316Ti, 317, 317L, 321, 347, 347H, 304N, 316L, 316N, 201, 202 and has an outer diameter range from 21.3mm to 660.4mm. It is mainly used in electric resistance welded pipes, ASTM stainless steel tube, stainless steel seamless tube and TIG welded stainless steel pipe. It is very durable and corrosion resistant, and is widely used in chemical, petroleum, medical, food, light industry, machinery, instrument, and other industrial sectors.

Customization:

Customized Stainless Steel Pipe Tube

  • Brand Name: TALAT
  • Place of Origin: China
  • Product: Electric Resistance Welded Steel Pipe
  • Thickness: Customized
  • Outer Diameter: 6mm-2500mm
  • Material: 304, 304L, 309S, 310S, 316, 316Ti, 317, 317L, 321, 347, 347H, 304N, 316L, 316N, 201, 202
  • Surface Treatment: Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Painting Or As Per Customer’s Requirement
  • Specialized in Stainless Steel Tube Pipe, stainless steel hollow tube, Stainless Steel Seamless Tube, Stainless Steel Welded Tube


Packing and Shipping:

1. Standard sea-worthy export packing,
2. plastic cap with both ends
3. steel strip bundled package, waterproof cloth packaging
4. wooden case,wooden pallet package
5. container or bulk (According to customer's requirement)
6. wooden pallets with plastics protection.
7. 15-20MT can be loaded into 20 ftcontainer and 25-27MT can be loaded into 40 ft container.
8. For 20 ft container the max length is 5.8m, for 40 ft container the max length is 11.8m.
9. The other packing can be made based on the customer requirement.
