Product Details:
|
| Item: | AiSi, JIS, AISI, ASTM, DIN, TUV,BV,SUS,etc | Standard: | 3-24mm |
|---|---|---|---|
| Type: | Equal | Steel Grade: | 301L, S30815, 301, 304N, 310S, S32305, 410 |
| Payment Term: | T/T L/C(30% Deposite) | Technique: | Cold Rolled Hot Rolled |
| Sample: | FREE SAMPLE | Length: | 2m, 5m, 6m Or As Required |
| Surface Treatment: | Black, Polishing, Bright | ||
| High Light: | AISI 304 Stainless Steel Angle,430 Stainless Steel Angle 3mm,3mm Stainless Steel Equal Angle |
||

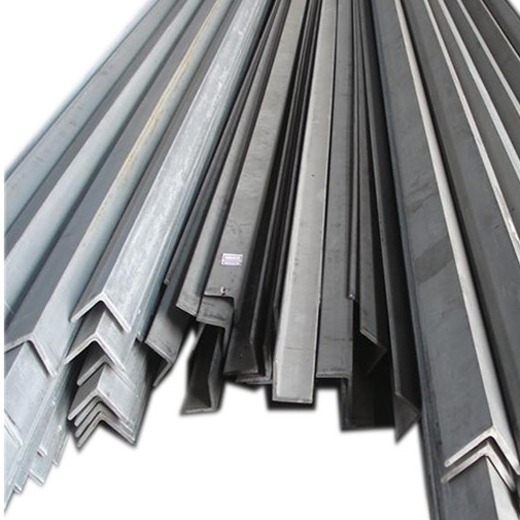

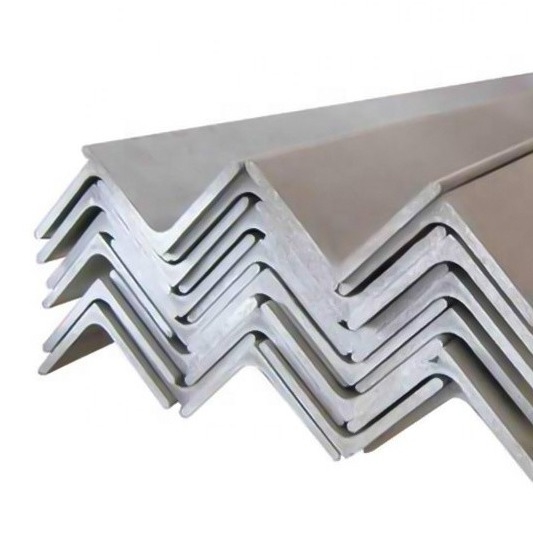

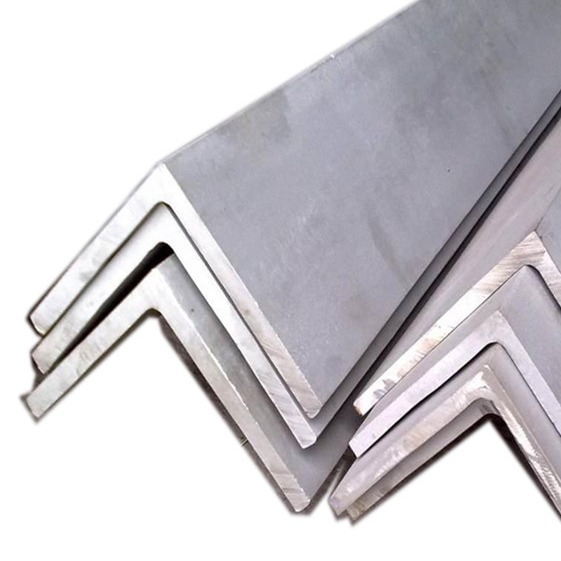

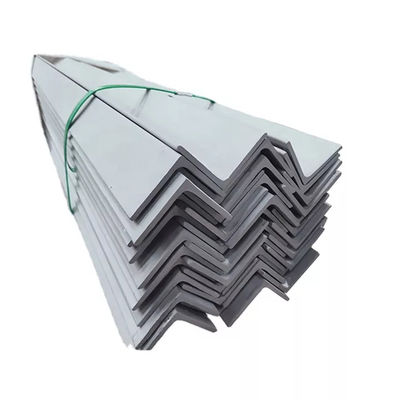

Hot Rolled Aisi 2mm 316L 201 304 316 430 Stainless Steel Angle With Cheap Price
Stainless steel Angle steel can be composed of a variety of different stress components according to the different needs of the structure, but also can be used as a connector between components widely used in all kinds of building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, Container frame and warehouse shelves, etc Built with carbon structural steel, stainless steel Angle bar genera is simple section steel, steel is mainly used for metal components and framework of workshop In use requires good weldability plastic deformation performance and certain mechanical strength in the production of stainless steel Angle steel billet raw material for low carbon steel billet, finished product stainless steel Angle steel for hot rolling forming Delivery in normal or hot rolled condition.
| Specification for Stainless Steel Angle |
| No | Grade(EN) |
Grade (ASTM/UNS) |
C | N | Cr | Ni | Mo | Others |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
| 17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
| 21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
| Surface Finished | Characteristics | Applications |
| 2B | Bright heat treatment after cold rolling | Medical Equipment,kitchen utensils,electric appliances,Medical Instruments,constructions,etc |
| BA | Processed with bright heat treatment after cold rolling | Kitchen utensils,Electric equipment,building constructions,etc |
| NO.4 | Finished by polishing with NO.150 to NO.180 abrasives specifified in JIS R6001 | Kitchen utensils,Building construction,Medical equipment,etc |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh | Constructions,mirrors,plate sets,decorations,etc |
| HL | Finished by polishing with the abrasives of suitable grain size to obtain continuous streaks | Building construction,etc |
| Stainless Steel Angle Application |
1. Bridges
2. Building construction
3. Transport
4. Shelving units
5. Equipment manufacturing
| Package |
| Package |
Standard export seaworthy package,suit for all kinds of transport, or as required. Water-proof Paper + Edge protection + Wooden Pallets |
| Bulk Size | Any size |
| Loading Port | Tianjin, Xingang Port, Qingdao,Shanghai, Ningbo, or any China Seaport |
| Container |
1*20ft container load Max. 25 Ton, Max. length 5.8m 1*40ft container load Max. 25 Ton, Max. Length 11.8m |
| Delivery Time | 7-15 days or according to the order's quantity |
