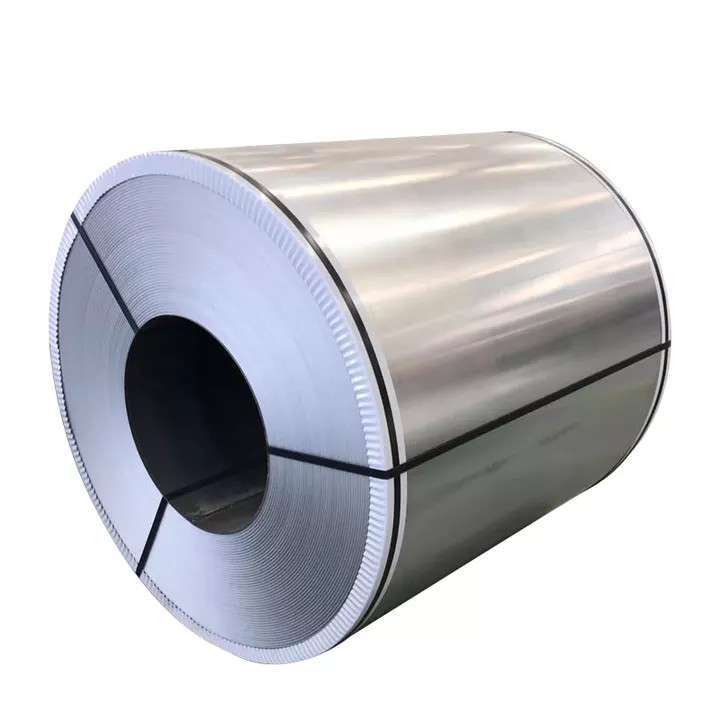

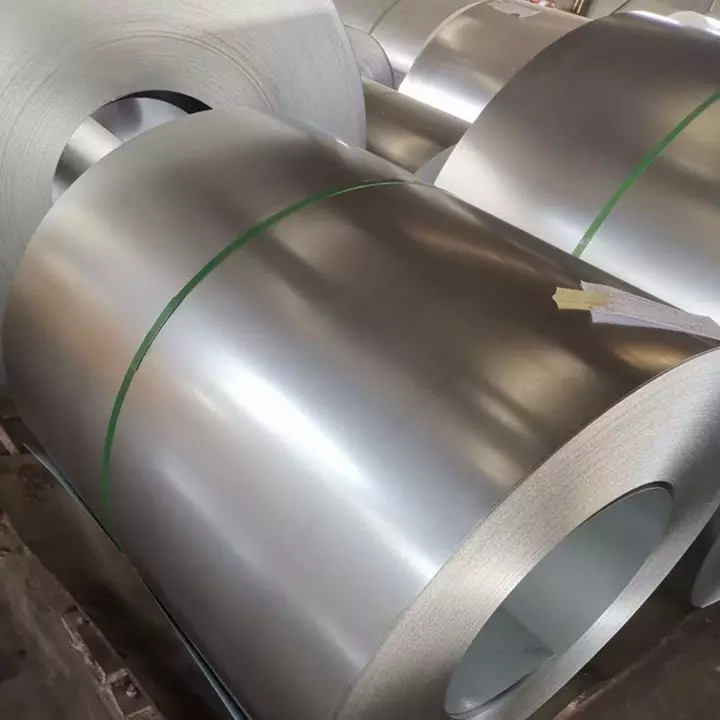

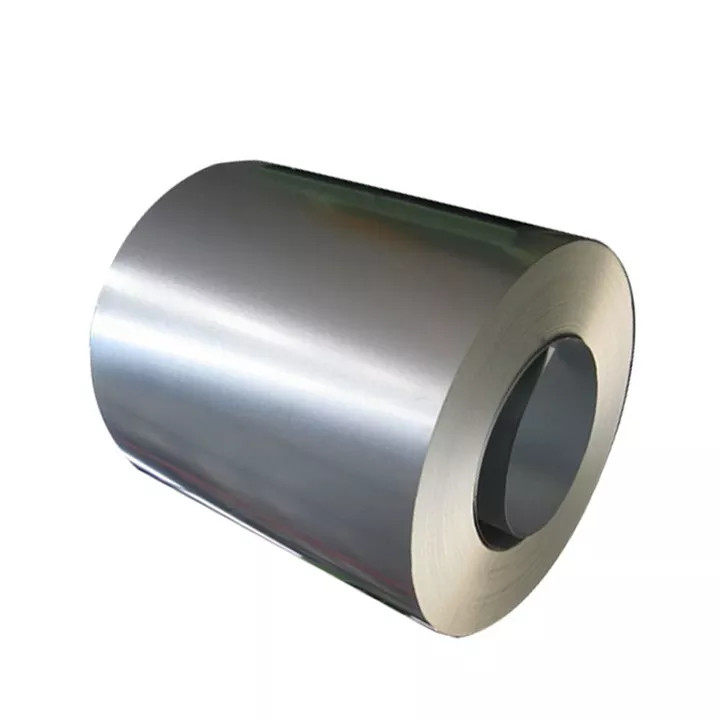

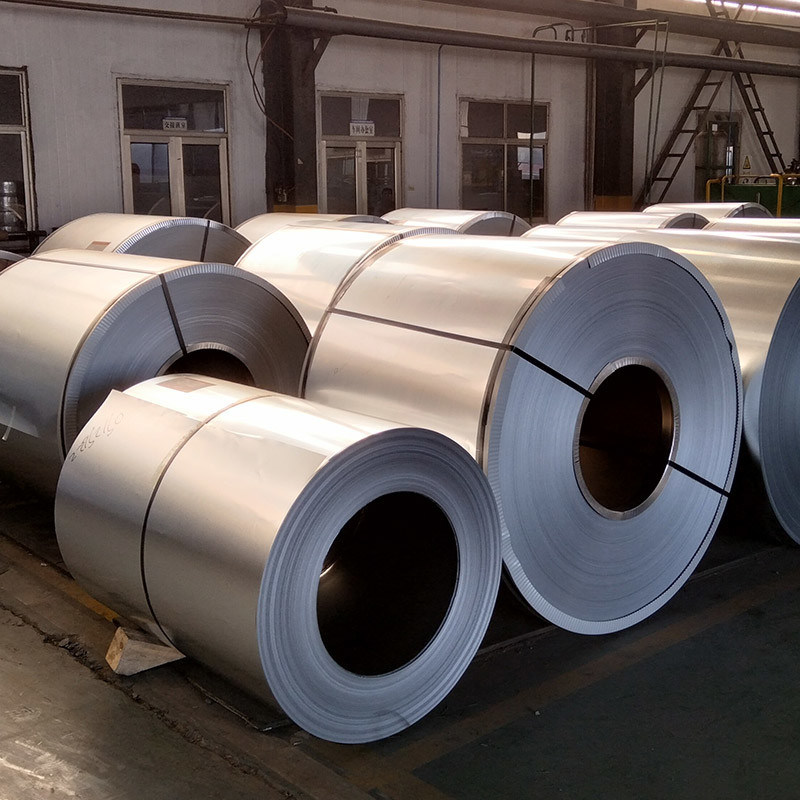

Aluzinc Galvalume Zinc Aluminium Coils And Sheets Aluzinc Steel In Coils
| Product Introduction of Galvalume Steel Coils/Sheet/Plate |
Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.
Product Advantages
1. Corrosion resistance:When zinc is abraded, aluminum forms a dense layer of alumina that prevents further corrosion of the corrosive material inside.
2. Heat resistance:Aluminum zinc alloy steel has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius.
3. Thermal reflexes:The heat reflectivity of Al Zn steel plate is very high, which is two times that of galvanized steel sheet.
4. Economical efficiency:Since the density of 55% AL-Zn is smaller than the density of Zn, the aluminum-zinc-plated steel sheet is more than 3% larger than the area of the plated steel sheet when the weight is the same and the thickness of the gold-plated layer is the same
| Specification of Galvalume Steel Coils |
| Name | Galvalume Steel Coil/sheet |
|
Thickness
|
0.13-3.0mm
|
|
Width
|
Galvalume steel strip:24-600 mm; galvalume steel coil:600-1250mm
|
|
Coil weight
|
Usually is 2-4.5 tons,the max coil is 10 tons
|
|
Al Zn coating:
|
30-150g/m2
|
|
Coil ID
|
508 mm
|
|
Sted grade
|
DX51D,DX52D, ,S350GD,S5S0GD,SGHC
|
|
Surface
|
Dry, Oil, Chromate, AFP/Galva clean, Non-Gr, Gr free
|
|
Packaging
|
Seaworthy export standard package, or according to the customers requirement
|
|
Delivery time
|
With 15 -25 days after receipt of deposit or L/C
|
|
Market
|
North/South America, Europe, Asia,Africa,Mid East
|
|
Productivity
|
1000 Metric ton /month
|
| Galvalume Steel Coil Applications |
1) Galvalume Steel is composed of 55% aluminum, 43.5% zinc and 1.5% Silicon.
2) Galvalume steel is formable, weldable and paintable.
3) Galvalume steel has superior corrosion resistance in the most atmospheric conditions. This is achieved through the combination
of the sacrificial protection of the zinc and the barrier protection of the aluminum.
4) Galvalume Steel coating out-perform galvanized coating from 2-6 times than hot dip galvanized steel.
| Packing & Delivery |
Packing Details: Standard seaworthy package, or as per customers request.
Delivery Details: 15-25 days after receipt of L/C or deposit.
