310S Strut Stainless Steel U Channel ASTM Hot Rolled 200 Series 321 316

310S Strut Stainless Steel U Channel ASTM Hot Rolled 200 Series 321 316

310S Stainless Steel U Channel

2.0mm Hot Rolled Steel U Channel

Stainless Strut Steel U Channel

Place of Origin:

China

Brand Name:

TALAT

Certification:

SGS

Model Number:

SS U Channel

Contact Us

Request A Quote
Product Details
Shape:
U Channel,C Channel,C/U Channel
Standard:
ASTM,GB,DIN,AISI,BS
Application:
Construction,Supporting System,Steel Structure Building
Product Name:
Stainless Strut Steel U Channel
Technique:
Hot Rolled Steel Channel
Length:
5.8M-12M,6m-12m,1-12m Or As Customer Request
Thickness:
2.0mm,1.5mm,0.8mm - 25mm,2.75mm 3.0mm 41x41 U Channel
Payment & Shipping Terms
Minimum Order Quantity
2000 kgs
Price
Negotiable
Packaging Details
Export standard packing or according to customers' requirement
Delivery Time
1-2 weeks
Payment Terms
T/T
Supply Ability
15000 tons per week
Product Description

ASTM Hot Rolled 200 series 300 series 321 316 310S Stainless Steel U Channel

Stainless Steel U Channel Introduction

(1) Main uses of hot-rolled stainless steel ordinary channel steel: ordinary channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures, and is often used in conjunction with I-beam steel.
(2) Hot-rolled stainless steel light channel steel (YB164-63) Hot-rolled light channel steel is a kind of steel with wide legs and thin walls, which has better economic effect than ordinary hot-rolled channel steel. Its specifications and models range from 5-40#. In 1966, the smelting standard stipulated the specification range from 10-40#. Main use: construction and steel structure, etc.
The commonly used stainless steel channel materials for stainless steel production are: 201, 202, 301, 304, 321, 316, 316L, and special materials can generally be customized.



Production Description

Product name
Stainless steel Channel
Standard
ASTM,BS,GB,JIS,etc
Grade
SS400, ST37-2, A36, S235JRG1, Q235, Q345 etc
Technique
Hot rolled(elementary) Can be processed repeatedly
Strength of extension
A36/420MPa S355JR/485MPa
Size
GB Steel channel 50*37*4.5-400*104*14.5
JIS Steel channel 75*40*3.8*7-152*76*6.4*9
EN Steel channel 140*60*7*10-200*75*8.5*11.5
SPECIFICATION
SIZE
KG/M
5#
50*37*4.5
5.438
6.3#
63*40*4.8
6.634
8#
80*43*5.0
8.045
10#
100*48*5.3
10.007
12#
120*53*5.5
12.059
14#A
140*58*6.0
14.535
14#B
140*60*8.0
16.733
16#A
160*63*6.5
17.24
16#B
160*65*8.5
19.752
18#A
180*68*7.0
20.174
18#B
180*70*9.0
23
20#A
200*73*7.0
22.337
20#B
200*75*9.0
25.777
22#A
220*77*7.0
24.999
22#B
220*79*9.0
28.453
25#A
250*78*7.0
27.41
25#B
250*80*9.0
31.335
25#C
250*82*11.0
35.26
28#A
280*82*7.5
31.427
28#B
280*84*9.5
35.823
28#C
280*86*11.5
40.219
30#A
300*85*7.5
34.463
30#B
300*87*9.5
39.173
30#C
300*89*11.5
43.883
32#A
320*88*8.0
38.083
32#B
320*90*10.0
43.107
32#C
320*92*12.0
48.131
36#A
360*96*9.0
47.814
36#B
360*98*11.0
53.466
36#C
360*100*13.0
59.118
40#A
400*100*10.5
58.928
40#B
400*102*12.5
65.204
40#C
400*104*14.5
71.488

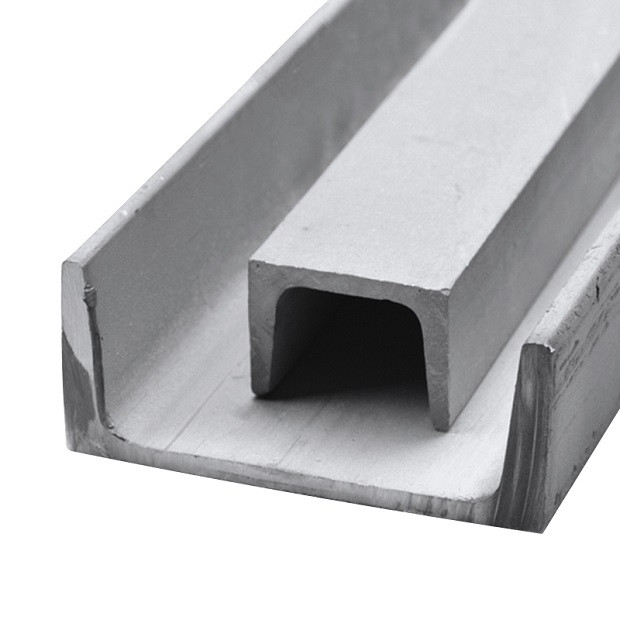

310S Strut Stainless Steel U Channel ASTM Hot Rolled 200 Series 321 316 0

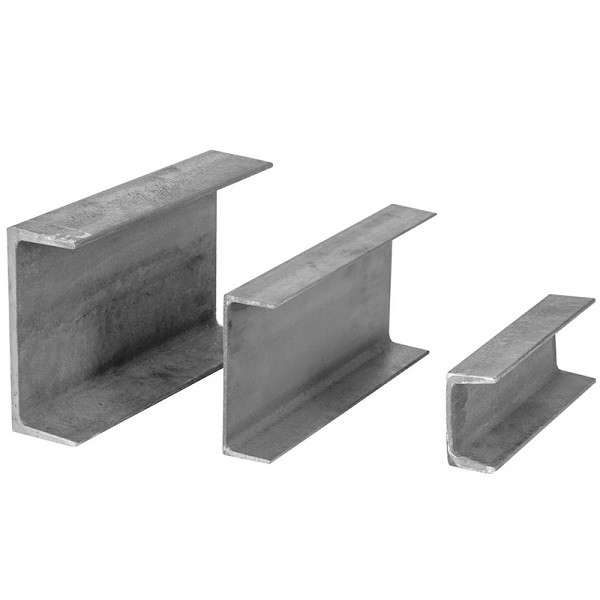

310S Strut Stainless Steel U Channel ASTM Hot Rolled 200 Series 321 316 1





Advantage:
Channel steel is mainly used in engineering, factory setting, mechanical setting, bridges, highways, houses, etc.; it has good mechanical and physical functions, and has good energy saving and environmental protection effects. Channel steel is an economical section steel, which is usually used in industries, construction, bridges, kerosene drilling platforms, etc., and the market demand is very complex.



Channel steel is a new economical construction steel. The section style of the channel steel is economical and suitable, the mechanical function is good, the extension of each point on the section is balanced during rolling, the internal stress is small, and compared with the general I-beam, it has the advantages of large section modulus, light weight and metal saving, which can make the construction The structure is reduced by 30-40%. In addition, because the inner and outer sides of the legs are parallel, and the legs are at right angles, the assembly and combination of parts can save welding and riveting workload by 25%. It is often used in large-scale constructions with good cross-section stability (such as workshops, high-rise buildings, etc.) construction, etc.), as well as bridges, ships, lifting and transporting machinery, setting foundations, supports, foundation piles, etc.



Channel steel is an economical section steel with superior cross-sectional mechanical properties, which is optimized and grown from I-beam steel. Its characteristics are as follows: wide flange, large lateral stiffness, strong bending resistance, and two surfaces of the flange are parallel to each other. It makes connection, processing and assembly light and convenient. As well as the comparison of welding and photographing I-beams, the cost is low, the precision is high, the residual stress is small, no noble welding materials and weld surveys are required, and the construction cost of the steel structure is saved by about 30%. Under the same section load, the hot-rolled H-steel structure is 15%-20% less than the ancient steel structure. Compared with the concrete structure, the hot-rolled H-steel structure can increase the operating area by 6%, while the self-weight of the structure is reduced by 20%-30%, reducing the internal force of the structural design.



Channel steel can be processed into T-shaped steel, and honeycomb beams can be combined into various sections, which greatly meet the needs of engineering design and construction.

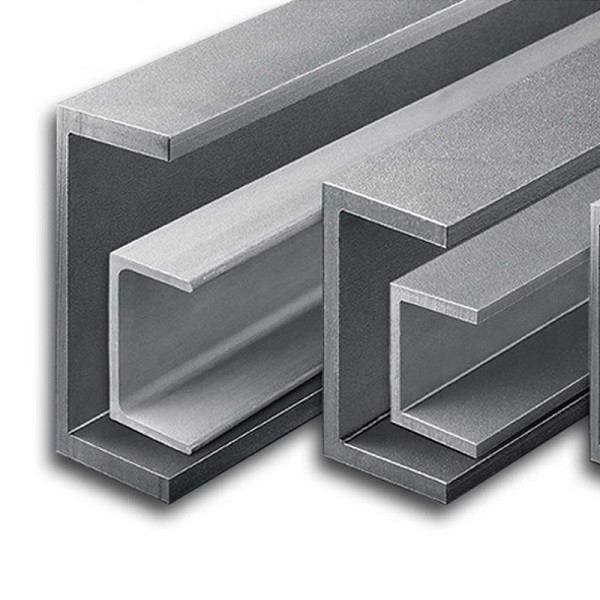

310S Strut Stainless Steel U Channel ASTM Hot Rolled 200 Series 321 316 2
