|Application:||Chemical,acidic,salt Water Environments......||Shape:||Round|
|Special Use:||Valve Steels|

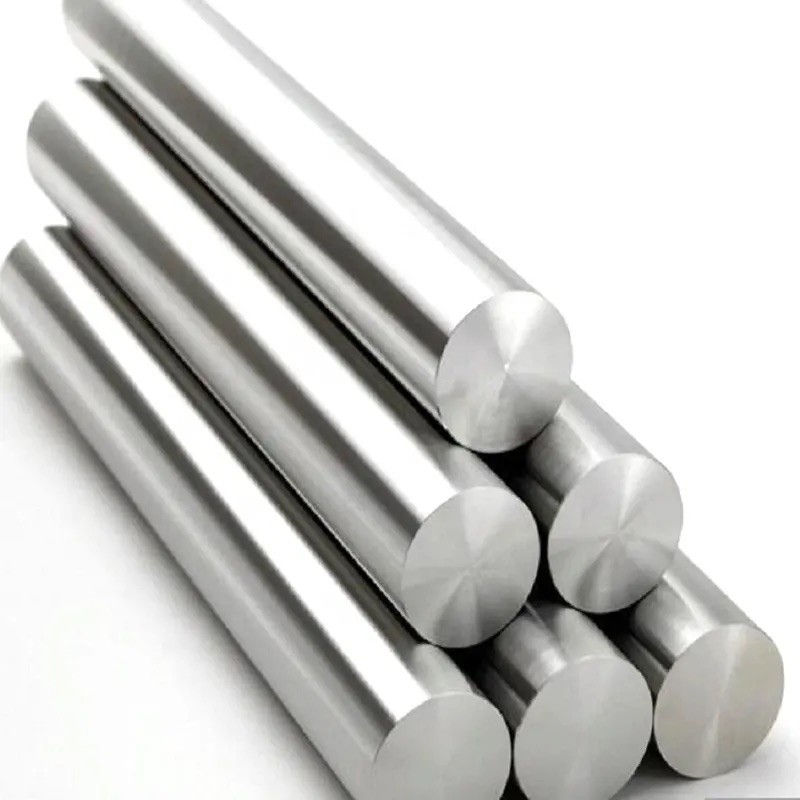

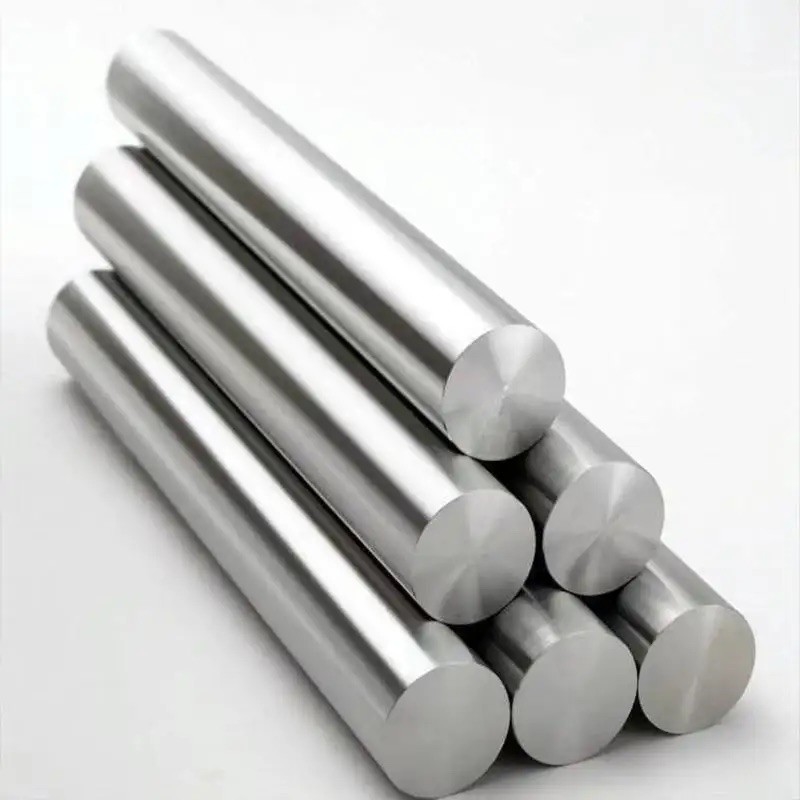

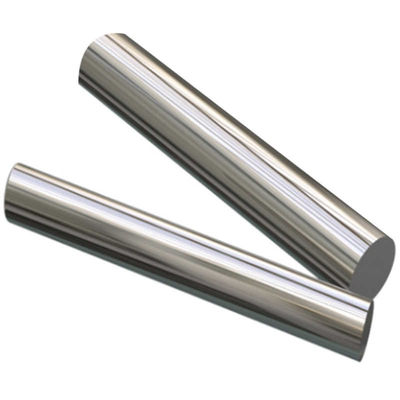

Drawn Polished Stainless Steel Round Bars,
Stainless Steel S31803 Round Bars,
Bright 480mm Stainless Round Bars
Stainless Steel Round Bar
201 Stainless Steel
Copper content: J4>J1>J3>J2>J5.
Carbon content: J5>J2>J3>J1>J4.
Hardness arrangement: J5, J2>J3>J1>J4.
The order of prices from high to low is: J4>J1>J3>J2, J5.
J1(Mid Copper): The carbon content is slightly higher than J4 and the copper
content is lower than J4. Its processing performance is less thanJ4. It is suitable for ordinary shallow drawing and deep drawing products, such as decorative board, sanitary products, sink,product tube, etc.
J2, J5:Decorative tubes: Simple decorative tubes
are still good, because the hardness is high (both above 96°) and the polishing is morebeautiful, but the square tube or the
curved tube (90°) is prone to bursting.
In terms of flat plate: due to the high hardness, the board surface is beautiful, and the surface treatment such as frosting,
polishing and plating is acceptable. But the biggest problem is the bending problem, the bend is easy to break, and the groove is easy to burst. Poor extensibility.
J3(Low Copper): Suitable for decorative tubes. Simple processing can be done on the decorative panel, but it is not possible with a little difficulty. There is feedback that the shearing plate is bent, and there is an inner seam after breaking (black titanium,color plate series, sanding plate, broken, folded out with inner seam). The sink material has been tried to bend, 90 degrees, but it will not continue.
J4( High Copper): It is the higher end of the J series. It is suitable for small angle types of deep drawing products. Most of the products that require deep salt picking and salt spray test will choose it. For example, sinks, kitchen utensils, bathroom products, water bottles, vacuum flasks, door hinges, shackles, etc.
304 Stainless Steel
304 is a versatile stainless steel that is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel.
316 stainless steel
316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance, and high-temperature strength due to the addition of Mo, which can be used under harsh conditions; excellent work hardening (non-magnetic).
Equipment for seawater use,chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; photographs, food industry, facilities incoastal areas, ropes, CD rods, bolts, nuts.
430 stainless steel
Type 430 Stainless Steel is perhaps the most popular non-hardenable ferritic stainless steel available. Type 430 is known for good corrosion, heat, oxidation resistance, and its decorative nature.It is important to note that when well polished or buffed its corrosion resistance increases. All welding must occur at higher temperatures, but it is easily machined, bent, and formed.
Thanks to this combination it is used in a number of different commercial and industrial applications including:Furnace combustion chambers,Automotive trim and molding,Gutters and downspouts,Nitric acid plant equipment,Oil and Gas refinery equipment,Restaurant equipment,Dishwasher linings,Element supports and fasteners.etc.
|Product Name||Bar and Rod|
|Type||Round bar,Angle bar,Channel bar,Square bar,Flat bar,I/H bar,Hexagonal bar and profiles|
|Surface||Black,bright,rough turned,grinding,centreless ground etc|
|Technique||Hot Rolled,Cold Rolled,Cold Drawn,Forged|
|Tolerance||H8,H9 or as required|
200 series: 201,202,202Cu,204Cu
300 series: 301,303,303Cu,304,304Cu,304L,305,309,310,310S,316,316L,321
400 series: 409,410,420,430,431,440c,444,446
600 series: 630,631 (17-4ph,17-7ph)
Others: nitronic 50,nitronic 60,nimonic 75,nimonic 80A,nimonic 90,inconel 600,inconel 625,inconel 718,inconel 725,alloy 20,alloy 28,incoloy 800,incoloy 825,hastelloy C276,hastelloy C22,hastelloy X,monel 400,monel k-500 etc.
|Surface finish||Characteristics & Application|
|NO.1||Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices.|
|Cold-rolled, an nealed and pick led with out skinpassing the dull prod ucts can be used as auto mo bile parts, build ing materrials and pipings.|
|NO.2B||The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy com pre hen sive uses.|
Polished with abra sive belt of grit #100#120,have bet ter bright ness with dis con tin u ous coarse stria, used as in ner and ex ter nal or na ments for building, elec tri cal ap pli anc es and kitchen uten sils etc.
Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc.
|HL||Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc.|
|BA||Cold rolled, bright an nealed and skin passed, the prod uct has ex cel lent bright ness and good re flex iv i ty like mirror, used for lectrical appliances, mirror, kitch en apparatus, or na ment ma te ri als etc.|
|Domestic||cutlery, sinks, saucepans, washing machine drums, microwave oven liners, razor blades|
|Transport||exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles|
|Oil and Gas||platform accommodation, cable trays, subsea pipelines|
|Medical||Surgical instruments, surgical implants, MRI scanners|
|Food and Drink||Catering equipment, brewing, distilling, food processing|
|Water||Water and sewage treatment, water tubing, hot water tanks|
|Chemical/Pharmaceutical||pressure vessels, process piping|
cladding, handrails, door and window fittings, street furniture, structural sections
|reinforcement bar,lighting columns, lintels, masonry supports|
|Packing Details||Export sea worthy package + water proof paper + wooden pallet|
Safe loading and fixing Professional teams
|Price term||FOB China port & CIF Destination Port & CFR|
|Delivery Detail||within 7-21 working days after receiving the deposit or according to your order quantity|
