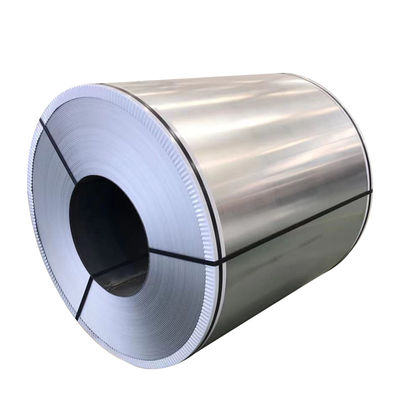

Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated

I'm Online Chat Now

Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated

Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated
Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated

Large Image :  Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated

Product Details:
Place of Origin: China
Brand Name: FULILAI
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: Sea-worthy Package
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20000 Tons per Month

Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated

Description
Name: Galvanized Steel Coils Thickness: 0.1-2mm
Tolerance: ±5% Standard: ASTM,AISI,JIS,DIN,GB
Surface: BA/2B/NO.1/NO.3/NO.4/8K/HL Processing Service: Decoiling, Cutting, Punching
Grade: SGCC DX51D DX52D Hard: Soft, Hard, Half Hard, Quarter Hard, Spring Hard Etc.
Application: For Roofing Sheet MOQ: 10 Tons
Payment: T/T 30% Advanced Packing: Standard Seaworthy Packaging
Delivery: 10-15 Days
High Light:

PPGI Galvanized Steel Coil Sheet

,

2mm Galvanized Steel Coil Roofing Sheet

,

Low Carbon Galvanized Steel Coil Sheet

ASTM hot rolled hot dipped roofing metal material low carbon zinc-coated PPGI Galvanized Steel Coil

Galvanized Steel Coils

A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.

Advantage

1. Corrosion resistance: Galvanized sheet has strong corrosion resistance, and its normal service life can reach 25 years, which is 3-6 times longer than that of galvanized sheet, which is suitable for stainless steel. The corrosion resistance of galvanized sheet comes from the barrier protection function of aluminum and the dedicated protection function of zinc. When zinc is dedicated to maintenance on trims, scratches and coating scratches, aluminum forms an insoluble oxide layer that acts as a barrier. Aluminum-zinc alloy steel coils have been exposed to outdoor exposure tests for more than 20 years in a variety of different atmospheric environments. It has proved that the edge protection function of 55% aluminum-zinc plated steel plate is better than that of galvanized steel plate and 5% aluminum-zinc plated steel plate. better.

2. Heat resistance: The galvanized sheet has a high thermal reflectivity and is suitable as a roof material. The galvanized steel sheet itself has excellent heat resistance and can be used in a high temperature environment up to 315 degrees.

3. Repaintability: (paint film adhesion) The galvanized sheet can maintain excellent adhesion with the paint film, and it can be directly painted or powdered without special pretreatment.

4. Corrosion resistance after coating: After the galvanized sheet itself is partially coated and baked, the corrosion resistance of the non-sprayed part is very little. The function is much better than electroplating color galvanized sheet, electrogalvanized sheet and hot-dip galvanized sheet.

5. Machinability: (shearing, stamping, spot welding, seam welding) galvanized steel plate has excellent processing function, can be punched, sheared, welded, etc., and the coating has good adhesion and impact resistance.

6. Conductivity: The surface of the galvanized sheet is specially treated with wax, which can meet the needs of electromagnetic shielding.


Hot Dipped PPGI Galvanized Steel Coil Sheet 2mm Roofing Metal Low Carbon Zinc Coated 0




 Specification of GI Sheet&Coils&Plate





Name  GI Sheet&Coils&Plate
Thickness
0.12-4.5mm
Width
Galvanized steel strip:24-600 mm; galvanized steel coil:600-1250mm
Coil weight
Usually is 3-4.5 tons,the max coil is 10 tons
Zn coating
0.13-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2;1.5-6.0 mm is 30-275 g/m2
Coil ID
600-1500 mm,Normal width is 91 4/1000/1219/1250/1500 mm
Steel grade
DX51D,DX52D,DC01,DC02,SGCC
Surface
regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry
Packaging
seaworthy export standard package, or according to the customers’requirement
Delivery time
With 10-15 days after receipt of deposit
Market
North/South America, Europe, Asia,Africa,Mid East
Productivity
2000 Metric ton /month



 Applications of GI Sheet&Coils&Plate





Fulilai's galvanized steel, hot dipped galvanized steel coil and galvanized steel sheet have a wide variety of uses across numerous industries:

  • Construction: roofs, walls, garages, soundproof walls, pipes and modular houses, etc.;
  • Automobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etc.;
  • Home appliances: refrigerator back panel, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof belt, LED backlight, electrical cabinet, etc.;
  • Agricultural use: pig houses, chicken houses, granaries, greenhouse pipes, etc.;
  • Others: thermal insulation cover, heat exchanger, dryer, water heater, etc.
